15A M19 Outdoor Power Connector 4 Pin IP67 Connectors Waterproof Automotive
15A M19 Outdoor Power Connector 4 Pin IP67 Connectors Waterproof Automotive
15A M19 Outdoor Power Connector 4 Pin IP67 Connectors Waterproof Automotive
15A M19 Outdoor Power Connector 4 Pin IP67 Connectors Waterproof Automotive
15A M19 Outdoor Power Connector 4 Pin IP67 Connectors Waterproof Automotive
15A M19 Outdoor Power Connector 4 Pin IP67 Connectors Waterproof Automotive
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Current rating :
15A
Rated voltage :
300V
Gender :
Male to Female
Material :
Nylon
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description

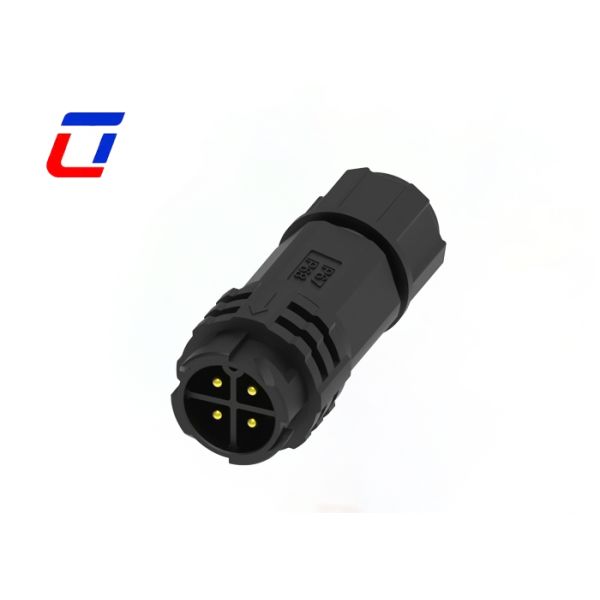

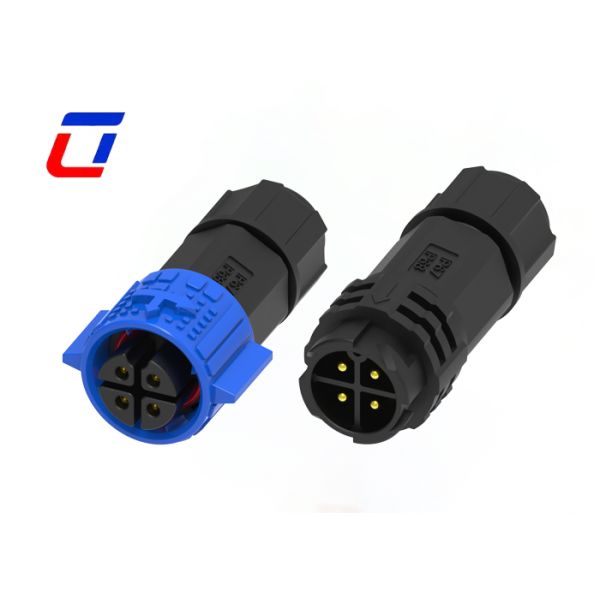

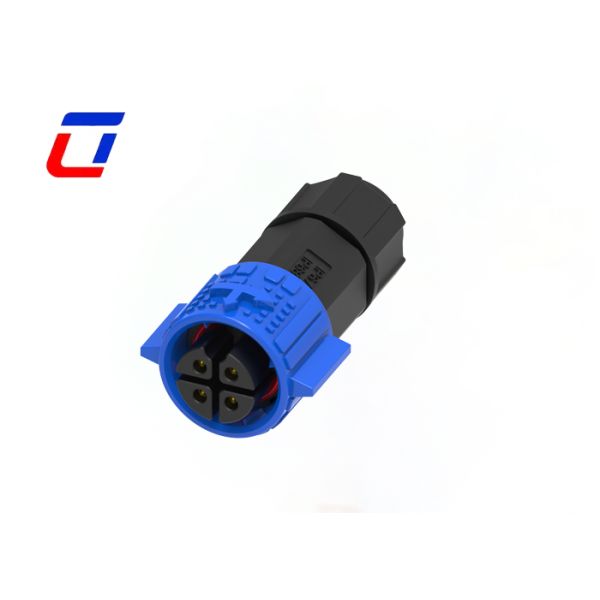

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector


Quick Description


Core Specifications

M19 standard circular structure, 4-pin power transmission channels, 300V rated voltage. Enables precise male-female docking, tailored for industrial-grade power connections, ideal for medium-low voltage system's efficient cable mating needs.

Structure & Craftsmanship

High-weather resistance engineering plastic housing; high-conductivity brass pin cores (precision-processed). Smooth male-female insertion/extraction, professional sealing structure ensures secure connection with excellent anti-vibration and anti-drop performance.

Transmission Performance

300V rated voltage for medium-low voltage power transmission; 4-pin design guarantees current-carrying stability. Low pin contact resistance reduces transmission energy consumption and heat generation, ensuring continuous and reliable equipment power supply.

Application Fields

Widely applied in outdoor power distribution systems, industrial automation equipment power interfaces, new energy outdoor facilities, security monitoring power connections and other power transmission scenarios requiring IP67 protection and male-female pairing.


Main Features


  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Current rated 15A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Electrical Parameters
Number of Poles 4Pin
Current Rating 15A max.
Voltage Rating 300VAC max
Durability Voltage 1000VAC @ 60 s.


Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Operation Parameters
Voltage Rating 600VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Design Sketch



FAQ


1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

3. Q: How to buy your products?

A: You need to do as followings:

* Confirm Current Rating and Number of Contacts

* Confirm Assembly style

* Confirm Cable Wire guage

* Confirm Cable Length and Material.
