Specifications
Brand Name :
SIPU
Model Number :
SMP-KWB2-3
Certification :
ISO9001-2017, RoHS, CE
Place of Origin :
CHINA
MOQ :
100
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs/year
Delivery Time :
3-6 Weeks
Packaging Details :
Carton
Product name :
SMP Female RF Cable Assembly – Semi-Flexible / Semi-Rigid Cable
Dielectric withstanding voltage :
500V
Insulation resistance :
≥5000MΩ
Durability :
500 times
Gender :
Female
Type :
Straight
Material :
Beryllium bronze
Plating :
Gold
Description

SMP Female RF Cable Assembly – Semi-Flexible / Semi-Rigid Cable

Product Overview

The SMP series consists of ultra-compact, plug-in, self-locking RF coaxial connectors designed for high-frequency, high-reliability applications. These connectors offer excellent vibration resistance, quick push-on/pull-off coupling, and allow for axial and radial float, making them ideal for blind-mate, high-density environments. Their threadless design simplifies installation and maintenance while maintaining signal integrity in demanding conditions.

With a compact footprint optimized for dense PCB layouts, SMP connectors deliver low reflection loss and stable performance up to 40 GHz or higher, ensuring robust signal transmission in harsh operating environments such as aerospace, automotive, and military systems.

Applications

Blind-mate connections between PCBs, chassis, and enclosures

High-frequency transmission in microwave and millimeter-wave systems

Aerospace, vehicle electronics, and rugged industrial systems

Product Features

Interface: SMP female connector

Cable type: Compatible with 2.2mm semi-flexible or semi-rigid coaxial cable

Frequency range: Up to 40 GHz

Impedance: 50 ohms

Excellent electrical performance with low VSWR

Solderable interface for secure and stable connections

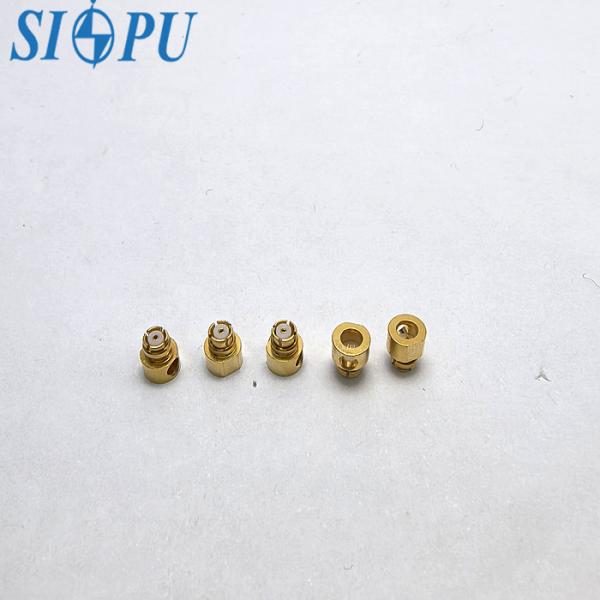

Product Appearance

SMP Female RF Cable Assembly – Semi-Flexible / Semi-Rigid Cable

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-26.5GHz

Dielectric withstanding voltage

 500V VSWR ≤1.1+0.02F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability

500times

Materials and Surface Treatment

Center conductor

 Beryllium copper, gold plating Insulating medium PTFE

Outer conductor

 Beryllium copper, gold plating / /

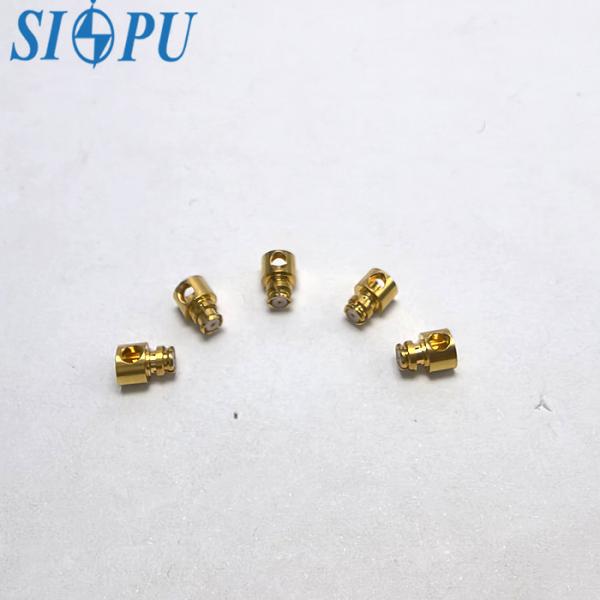

Product Image Gallery

SMP Female RF Cable Assembly – Semi-Flexible / Semi-Rigid Cable
