SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMP-KHD2
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
3-6 Weeks
Supply Ability :
100000pcs/year
Product name :
SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
Dielectric withstanding voltage :
500V
Insulation resistance :
≥5000MΩ
Frequency range :
DC-40GHz
Durability :
500 times
Gender :
Female
Type :
Straight
Material :
Beryllium bronze
Plating :
Gold
Description

SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering

Product Overview

The SMP series is a new generation of blind-mate RF coaxial connectors, characterized by ultra-compact size, lightweight design, high-frequency capability, fast push-on connection, and strong vibration resistance. It allows for limited axial and radial float, making it ideal for high-density modular systems and blind-mating applications.

Applications
Commonly used in radar systems, aerospace electronics, civil communications, antennas, and other compact RF systems requiring secure and high-performance connections.

Key Features

Ultra-small and lightweight for dense integration

Designed for microstrip PCB soldering applications

Allows limited axial and radial misalignment for blind-mating

Fast and reliable push-on/self-locking connection

Excellent mechanical stability and high-frequency performance

Easy to install in modular RF assemblies

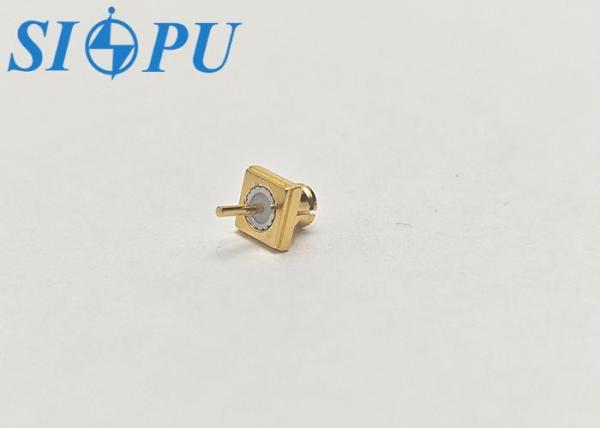

Product Appearance

SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering

Important Technical Parameter

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-40GHz

Dielectric withstanding voltage

 500V VSWR ≤1.1+0.01F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Beryllium bronze,gold plating / /

Product Image Gallery

SMP Female RF Coaxial Connector – Microstrip Type, PCB Soldering
