SMP Male RF Coaxial Connector – PCB Mount, Solder Type
SMP Male RF Coaxial Connector – PCB Mount, Solder Type
SMP Male RF Coaxial Connector – PCB Mount, Solder Type
SMP Male RF Coaxial Connector – PCB Mount, Solder Type
SMP Male RF Coaxial Connector – PCB Mount, Solder Type
SMP Male RF Coaxial Connector – PCB Mount, Solder Type
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMP-JHD21-S
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
master carton
Price :
Discuss
Delivery Time :
3-6 Weeks
Supply Ability :
100000pcs/year
Product name :
SMP Male RF Coaxial Connector – PCB Mount, Solder Type
Dielectric withstanding voltage :
500V
Insulation resistance :
≥5000MΩ
Temperature range :
-65～+125℃
Durability :
500 times
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Gold
Description

SMP Male RF Coaxial Connector – PCB Mount, Solder Type

Product Overview

The SMP connector is an ultra-miniature, push-on RF coaxial connector designed for high-frequency, high-data-rate applications in compact modules. Its self-aligning interface supports quick and reliable connections in dense circuit layouts.

Scope of Application:
Commonly used in quantum computing, broadband systems, antennas, and test & measurement equipment.

Product Features:
Typically soldered to printed circuit boards (PCBs), it offers excellent electrical performance, long service life, compact size, and strong resistance to environmental stress.

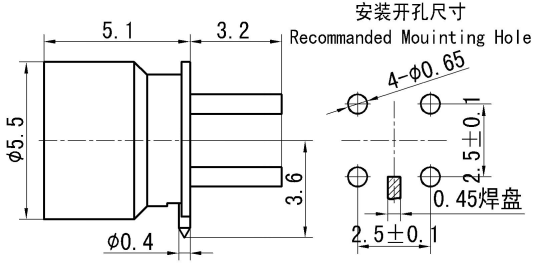

Product Appearance

SMP Male RF Coaxial Connector – PCB Mount, Solder Type

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-40GHz

Dielectric withstanding voltage

 500V VSWR ≤1.5

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring /

Product Image Gallery

SMP Male RF Coaxial Connector – PCB Mount, Solder Type
