SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type
Dielectric withstanding voltage :
500V
Insulation resistance :
≥5000MΩ
Temperature range :
-65～+125℃
Durability :
500 times
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Gold
Description

SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type

Product Overview

The SMP connector is a miniature, push-on/self-locking RF coaxial connector designed for high-frequency and high-reliability applications. It features compact size, fast mating, strong vibration resistance, and is especially well-suited for high-density interconnections between printed circuit boards, enclosures, and modular systems.

Applications
Ideal for use in matrix antennas, radar systems, aerospace electronics, communication equipment, and other space-constrained or high-density installations.

Key Features

Limited detent interface for secure yet easy push-on connection

Designed for PCB soldering (typically through-hole)

Compact and lightweight, ideal for dense modular layouts

Excellent environmental resistance and vibration performance

Supports high-frequency signal transmission with stable performance

Product Appearance

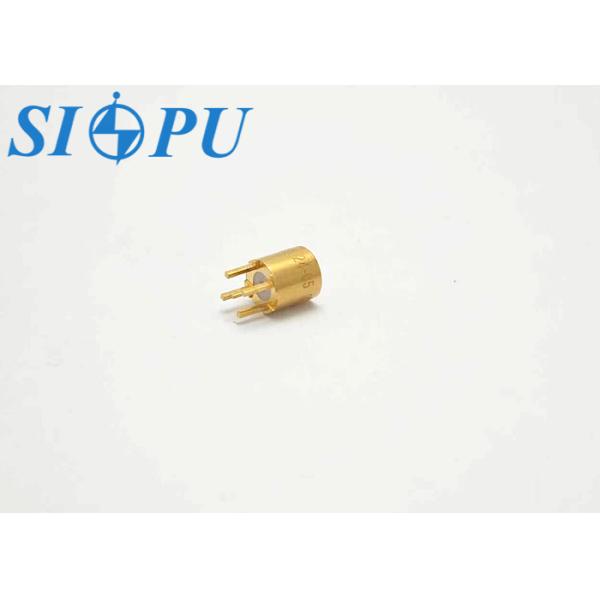

SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-40GHz

Dielectric withstanding voltage

 500V VSWR ≤1.5

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Limited detent

(max)

Engagement force

 45N

(min)

Separation force

 9N

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating / /

Product Image Gallery

SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type

Send your message to this supplier
Send Now

SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type

Ask Latest Price
Product Detail
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMP-JHD102
Certification :
ISO9001-2017, RoHS, CE
Contact Supplier
SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type
SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type
SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type
SMP Male Limited Detent RF Coaxial Connector – PCB Solder Type

Xi'an Sipu RF Technology Co., Ltd.

Verified Supplier
2 Years
Shaanxi
Business Type :
Manufacturer, Exporter
Main Products :
RF Coaxial Connector, SMA RF Connector, 2.92mm RF Connector
Employee Number :
100~499
Certification Level :
Verified Supplier
