SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-KFD46T
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount

Product Overview

SMA series connectors are widely used threaded RF coaxial connectors known for their compact size, high reliability, and excellent performance. They are suitable for microstrip line transitions or cable connections in RF circuits of digital communication systems and microwave devices.

Applications
Telecommunications, wireless communication systems, test and measurement equipment, network infrastructure, and microwave electronics.

Key Features

Dual-hole flange mounting for secure and stable installation

Microstrip interface size: φ1.3 × 3 mm

High reliability and long service life

Wide frequency bandwidth with excellent electrical performance

Compact design and strong environmental resistance

Suitable for high-frequency, high-density RF applications

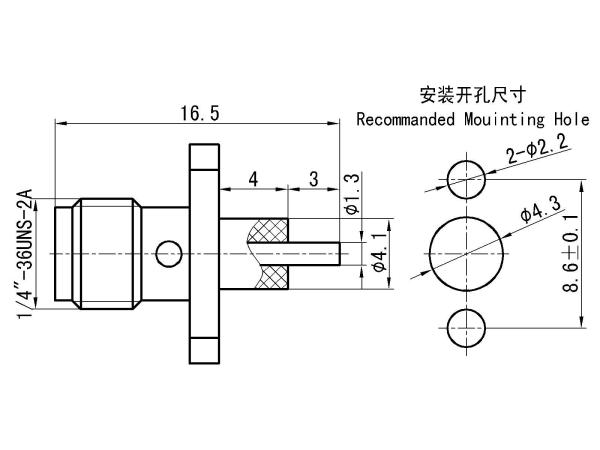

Product Appearance

​SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.05√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating

Insulating medium

 PTFE

Outer conductor

 Brass,gold plating / /

Product Image Gallery

SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue MountSMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue MountSMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount

SMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue MountSMA Female RF Coaxial Connector – Microstrip Type, Dual-Hole Flange, Blue Mount
