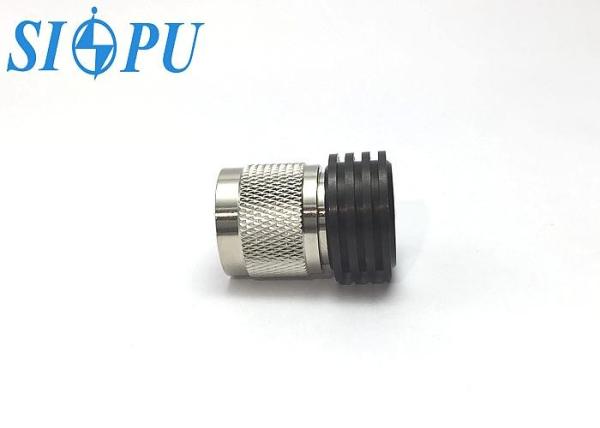

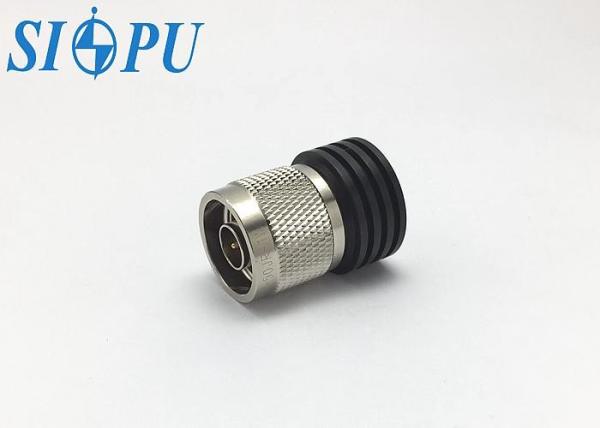

N Type Male Coaxial RF Termination Load – 1W Power Rating
N Type Male Coaxial RF Termination Load – 1W Power Rating
N Type Male Coaxial RF Termination Load – 1W Power Rating
N Type Male Coaxial RF Termination Load – 1W Power Rating
N Type Male Coaxial RF Termination Load – 1W Power Rating
N Type Male Coaxial RF Termination Load – 1W Power Rating
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Model Number :
N-50JR-1W
Certification :
ISO9001, R0HS, CE
Packaging Details :
Carton
Price :
Discuss
Supply Ability :
150000opcs/year
Delivery Time :
5-8work days
Product name :
N Type Male Coaxial RF Termination Load – 1W Power Rating
Dielectric withstanding voltage :
1W
Characteristic impedance :
50Ω
Gender :
Male
Type :
Stright
Material :
Brass
Plating :
Nickel
Description

N Type Male Coaxial RF Termination Load – 1W Power Rating

Product Overview

This coaxial termination load is a passive single-port device designed to absorb RF energy and minimize signal reflections. It ensures impedance matching with the transmission line, making it ideal as an energy-absorbing component in high-frequency systems. Widely used for precision testing and measurement of microwave devices, RF systems, and indoor distributed terminals.

Applications

RF signal transmission system testing

Microwave and radio equipment

Electronic measurement instruments

Indoor distribution systems and test setups

Key Features

N-Type male connector interface

1W power handling capability

Excellent electrical performance and signal integrity

High mechanical stability and durability

Wide frequency range support

High reliability for lab and field applications

Product Specifications

N Type Male Coaxial RF Termination Load – 1W Power Rating

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-12.5GHz

Power

 1W

VSWR

Ordinary level:≤1.2

Precision gradee:≤1.05

Mechanical property

Durability

500times

Materials and Surface Treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

Sealing ring

Silicon rubber

Product Image Gallery

N Type Male Coaxial RF Termination Load – 1W Power Rating
