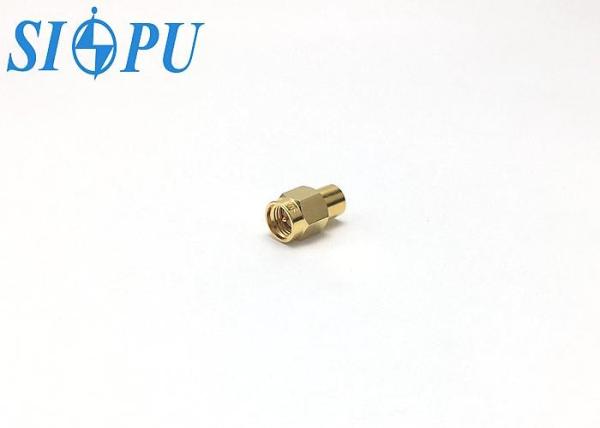

SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :
SMA-50JR
Certification :
ISO9001, R0HS, CE
Delivery Time :
5-8 business days
Packaging Details :
Carton
Price :
＄4.2-＄13.92, Price negotiable for large quantities
Supply Ability :
1000000 pcs/year
Characteristic impedance :
50Ω
Dielectric withstanding voltage :
1W
Product name :
SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
Gender :
male
Type :
Straight
Material :
Brass
Plating :
Gold
Description

SMA Male RF Coaxial Termination Load – Straight Type, 1W Power

Product Overview

This coaxial termination load is a passive microwave component designed to absorb all incident RF energy and minimize signal reflection. It plays a critical role in optimizing system matching and ensuring stable circuit performance.

Applications:
Ideal for use in:
RF signal transmission system testing
Radio equipment
Electronic instrumentation
Microwave and communication devices

Product Features:

Connector Type: SMA male

Power Handling: 1W

Frequency Range: Wideband compatibility

Performance: High electrical performance with low VSWR

Durability: Excellent mechanical stability

Size: Compact design for space-constrained systems

This termination load is a reliable choice for high-frequency systems requiring consistent and loss-minimized signal termination.

Product Specifications

SMA Male RF Coaxial Termination Load – Straight Type, 1W Power

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Power

 1W

VSWR

Ordinary level:≤1.2

Precision grade:≤1.05

Mechanical property

Durability

500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Sealing ring

Silicon rubber

Product Image Gallery

SMA Male RF Coaxial Termination Load – Straight Type, 1W Power
