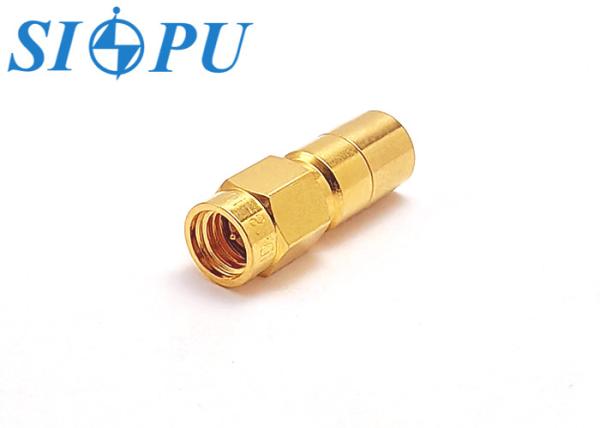

SSMA Male Coaxial RF Termination Load – 1W Power Rating
SSMA Male Coaxial RF Termination Load – 1W Power Rating
SSMA Male Coaxial RF Termination Load – 1W Power Rating
SSMA Male Coaxial RF Termination Load – 1W Power Rating
SSMA Male Coaxial RF Termination Load – 1W Power Rating
SSMA Male Coaxial RF Termination Load – 1W Power Rating
Specifications
Brand Name :
SIPU
Model Number :
SSMA-50JR
Certification :
ISO9001, R0HS, CE
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5-8 Work days
Packaging Details :
Carton
Price :
Discuss
Supply Ability :
100000pcs/year
Product name :
SSMA Male Coaxial RF Termination Load – 1W Power Rating
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Gold
Power :
1W
Characteristic impedance :
50Ω
Description

SSMA Male Coaxial RF Termination Load – 1W Power Rating

Product Overview

The coaxial termination load is a passive microwave component designed to absorb RF/microwave energy from a transmission line, preventing signal reflection and enhancing circuit matching. It is ideal for precision testing and system calibration in high-frequency electronic environments.

Application Scope

System testing of radio communication equipment

RF signal transmission analysis

Microwave instrumentation

Laboratory and field measurement applications

Indoor distributed terminal setups

Product Features

SSMA male connector interface

Rated for 1W power dissipation

Wide operating bandwidth with excellent impedance matching

Compact form factor for space-constrained installations

Robust mechanical construction with superior electrical performance

Product Specifications

SSMA Male Coaxial RF Termination Load – 1W Power Rating

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Power

 1W

VSWR

≤1.2

Mechanical property

Durability

500times

Materials and surface treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Sealing ring

Silicon rubber

Product Image Gallery

SSMA Male Coaxial RF Termination Load – 1W Power RatingSSMA Male Coaxial RF Termination Load – 1W Power RatingSSMA Male Coaxial RF Termination Load – 1W Power Rating
