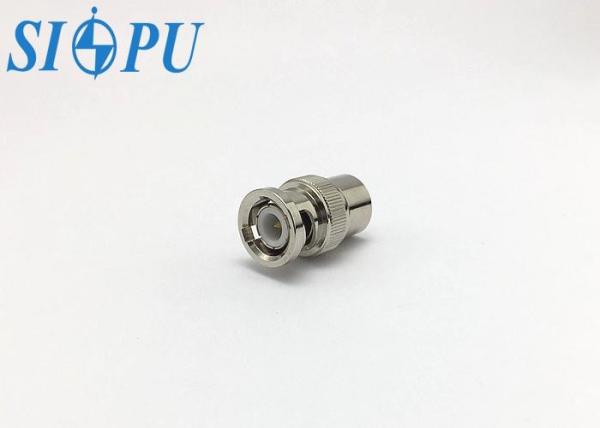

BNC Male Coaxial RF Termination Load – 1W Power Rating
BNC Male Coaxial RF Termination Load – 1W Power Rating
BNC Male Coaxial RF Termination Load – 1W Power Rating
BNC Male Coaxial RF Termination Load – 1W Power Rating
BNC Male Coaxial RF Termination Load – 1W Power Rating
BNC Male Coaxial RF Termination Load – 1W Power Rating
Specifications
Brand Name :
SIPU
Model Number :
BNC-50JR-1W
Certification :
ISO9001, R0HS, CE
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details :
Carton
Price :
Discuss
Supply Ability :
100000pcs/year
Delivery Time :
5-8work days
Product name :
BNC Male Coaxial RF Termination Load – 1W Power Rating
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Nickel
power :
1W
Characteristic impedance :
50Ω
Description

BNC Male Coaxial RF Termination Load – 1W Power Rating

Product Overview

This coaxial termination load is designed for precision RF and microwave system testing. It ensures proper impedance matching and signal absorption, helping prevent reflections and system damage. Ideal for use in RF signal transmission lines, microwave instruments, and wireless communication systems.

Application Scope

RF signal transmission system testing

Wireless communication equipment

Electronic instrumentation

Microwave device testing and calibration

Product Features

High electrical performance with low VSWR

Excellent mechanical durability and stability

Compact and rugged design

Reliable 50Ω impedance match for accurate signal termination

Product Specifications

BNC Male Coaxial RF Termination Load – 1W Power Rating

Important Technical Parameters

Electrical property

Temperature range

 -65～+165℃

Characteristic impedance

 50Ω

Frequency range

 DC-4GHz

Power

 1W

VSWR

Ordinary level:≤1.25

Precision gradee:≤1.1

Mechanical property

Durability

500times

Materials and Surface Treatment

Center conductor

phosphorus coppergold plating

Insulating medium

PTFE

Outer conductor

Brass, nickel plating

Sealing ring

Silicon rubber

Product Image Gallery

BNC Male Coaxial RF Termination Load – 1W Power RatingBNC Male Coaxial RF Termination Load – 1W Power RatingBNC Male Coaxial RF Termination Load – 1W Power Rating
