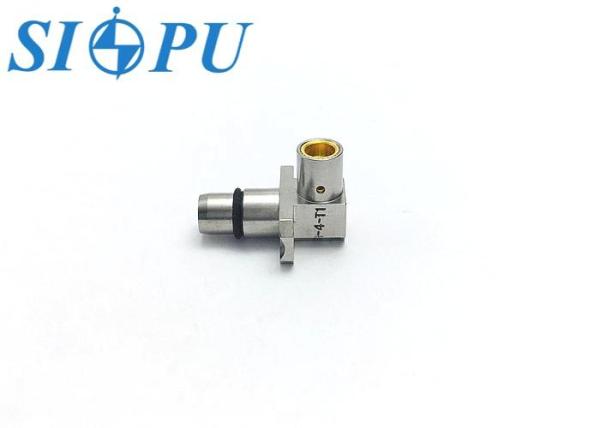

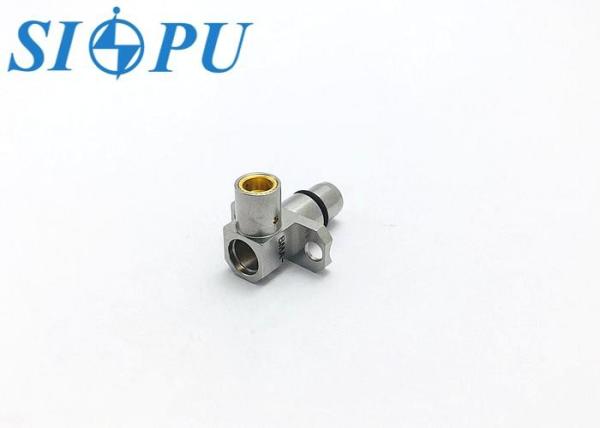

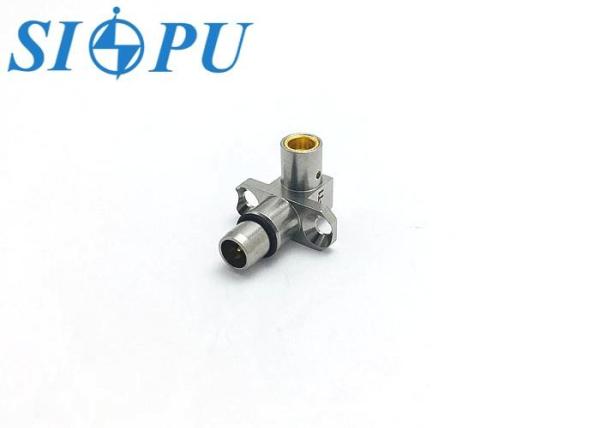

BMA Male RF Coaxial Connector – Right-Angle, Flange Mount

Product introduction

The BMA series is a compact, blind-mate slide-in RF coaxial connector designed for high-frequency modular systems. It features a right-angle structure and two-hole flange mount, offering reliable electrical contact and excellent mechanical performance. This connector is ideal for use in building block-style systems such as radar, communications, and aerospace modules.

Applications

Microwave circuit interconnections

Blind mating between chassis and cabinets

Modular electronic systems in defense and aerospace

Product Features

Right-angle (bent) cable entry

Two-hole flange mounting for secure installation

Mates with CXN3507 or AA1836 low-loss cables

Compact size with wide bandwidth support

Easy, reliable blind docking in tight system configurations

Product Specifications

BMA Male RF Coaxial Connector – Right-Angle, Flange Mount

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-22GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.08√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Bronze, gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel, passivating

Sealing ring

Aviation rubber

Product Image Gallery
