BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable
BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable
BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable
BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Model Number :
BMA(S)-JY3506-T
Certification :
ISO9001, RoHS, CE
Packaging Details :
master carton
Price :
DISCUSS
Delivery Time :
5-8works
Supply Ability :
120000
Product name :
BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Product Overview

This BMA male connector is an ultra-compact blind-mate RF coaxial connector designed for high-frequency applications. It is ideal for the interconnection of microwave circuits, particularly in chassis and cabinet assemblies requiring blind mating. The product complies with IEC 61169-33 standards, ensuring reliability and interoperability in modular systems.

Applications

Modular radar and communication systems

Microwave electronic equipment

Chassis and cabinet interconnects

Aerospace and defense modules

Product Features

Screw-mount receptacle for secure and stable installation

Blind-mate (slide-on) design for easy alignment-free connection

Mates with CXN3506 low-loss, phase-stable cable

Wide operating bandwidth

Small size and easy to install

Solderable interface for secure cable termination

Product Specifications

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-22GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.08√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

Product Image Gallery

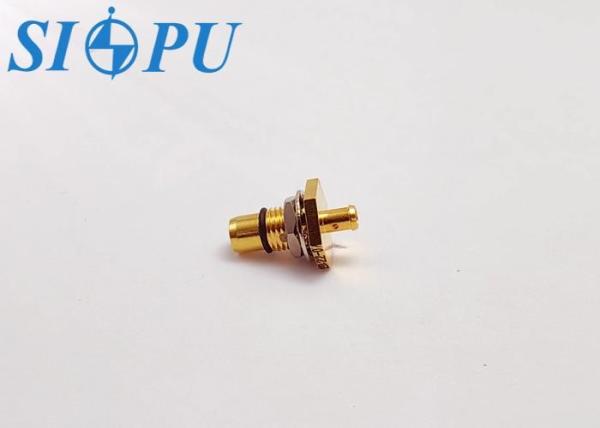

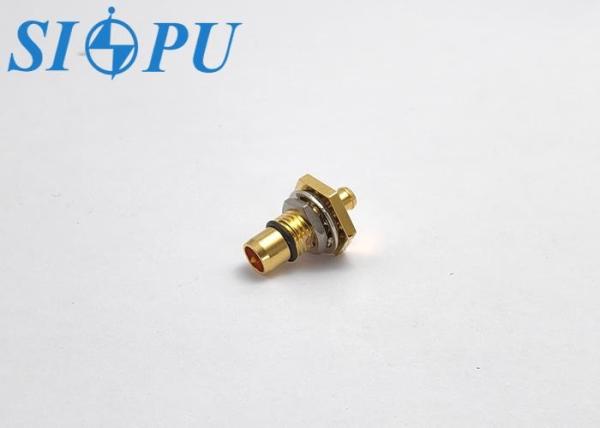

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 CableBMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Send your message to this supplier
Send Now

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Ask Latest Price
Product Detail
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Model Number :
BMA(S)-JY3506-T
Certification :
ISO9001, RoHS, CE
Contact Supplier
BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable
BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Xi'an Sipu RF Technology Co., Ltd.

Verified Supplier
2 Years
Shaanxi
Since 1998
Business Type :
Manufacturer, Exporter
Main Products :
RF Coaxial Connector, SMA RF Connector, 2.92mm RF Connector
Total Annual :
<20000000
Employee Number :
100~499
Certification Level :
Verified Supplier
