BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
BMA-KFB2-8
Certification :
ISO9001, R0HS, CE
Packaging Details :
Carton
Price :
DISCUSS
Delivery Time :
5-8works
Supply Ability :
10000pcs/years
Product name :
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Insulating medium :
PTFE
Characteristic impedance :
50Ω
Durability :
500 times
Description

BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable

Product Overview

The BMA series RF coaxial connectors, also known as blind-mate connectors, are specifically designed for high-frequency applications that require reliable and repeatable connections without visual alignment. Fully compliant with IEC 61169-33, they are ideal for chassis-to-chassis and cabinet-level connections, supporting the modular design of radar systems and other integrated equipment.

Applications
Modular system interconnections · Radar and aerospace systems · Communication chassis · Microwave subsystems

Product Features

Two-hole flange mount for secure and stable installation

Compatible with 2# semi-rigid and semi-flexible cables

Compact form factor for dense system layouts

Blind-mate capability ensures fast, tool-free connection

Wide frequency bandwidth with excellent VSWR and insertion loss characteristics

Superior mechanical durability and electrical reliability

Product Specifications

BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-22GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.08√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

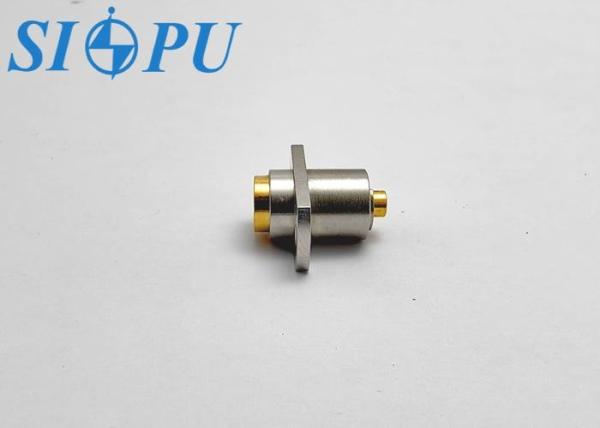

Product Image Gallery

BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible CableBMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
