Specifications
Brand Name :
SIPU
Model Number :
SBMA-JFB1G-T1
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
50
Price :
DISCUSS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
120000
Delivery Time :
6-8works
Packaging Details :
master carton
Product name :
SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
Gender :
Mela
Type :
Type
Material :
Stainless
Plating :
Steel，passivating
Durability :
500 times
Insulating medium :
PTFE
Description

SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Product Overview

The SBMA series is a new type of low-power blind-mate RF coaxial connector and a miniaturized version of the BMA series. It offers a compact design, high reliability, and is well-suited for the modularization of modern RF systems. Its slide-on interface allows for fast, alignment-free connections, ideal for high-density environments.

Application Scope

Blind mating between chassis and cabinet modules

Modular radar, communication, and electronic systems

High-frequency subsystem integration

Product Features

SBMA male connector with two-hole flange mounting

Compatible with 1# semi-rigid or semi-flexible coaxial cable

Compact size with wide bandwidth support

High mechanical reliability and easy blind connection

Ideal for space-constrained, modular installations

Product Specifications

SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 675V

VSWR

 ≤1.05+0.0125F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.05√F(GHz)dB

Contact resistance

Center conductor

 ≤8.0mΩ

Mechanical property

Outer conductor

 ≤3.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Bronze. gold plating

Insulating medium

PTFE

Outer conductor

Stainless

Sealing ring

/

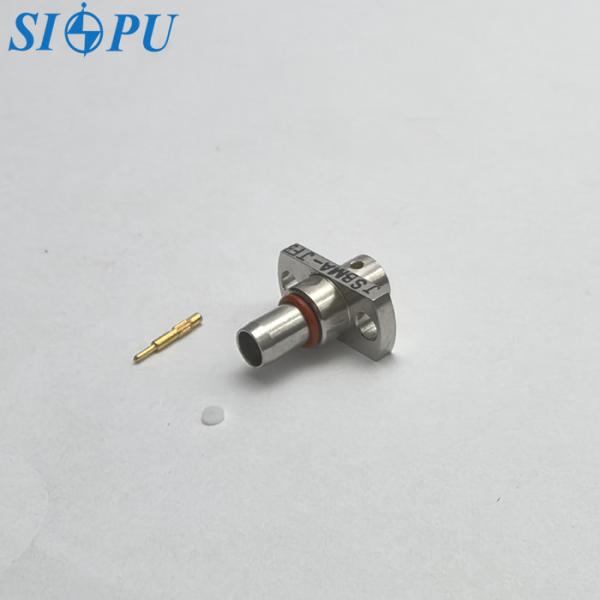

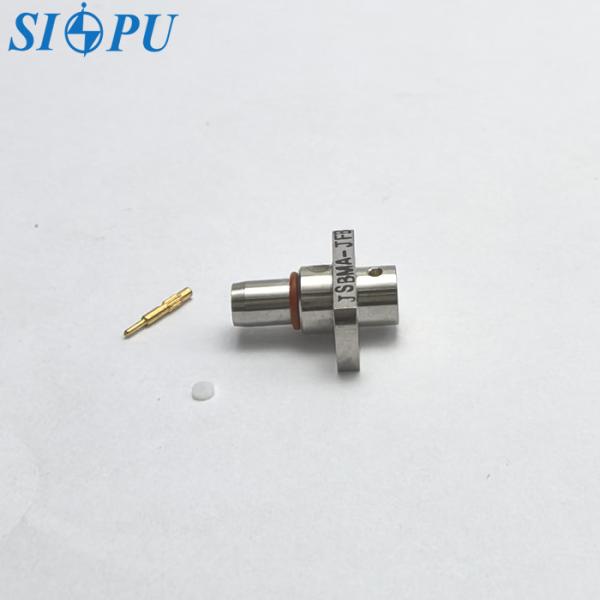

Product Image Gallery

SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
