SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-JFD133G
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
Gender :
Male
Type :
Straight
Material Science :
Stainless steel
Plating :
Passivation
Durability :
500 times
Description

SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount

Product Overview

The SMA RF coaxial connector is designed to ensure reliable signal transmission within the same series or across different series of RF connectors. It serves as a stable interconnection solution or transition interface in various RF systems.

Applications
Commonly used in system integration and conversion, including test cables, measurement equipment, and RF modules.

Key Features

Four-hole flange mount for secure mechanical installation

Inner conductor with 0.2 mm alignment slot for precise mating

Compatible with both SMA and 2.92mm male connectors

Excellent electrical performance with low VSWR and insertion loss

Strong environmental resistance and high connection reliability

Constructed from stainless steel for durability and corrosion resistance

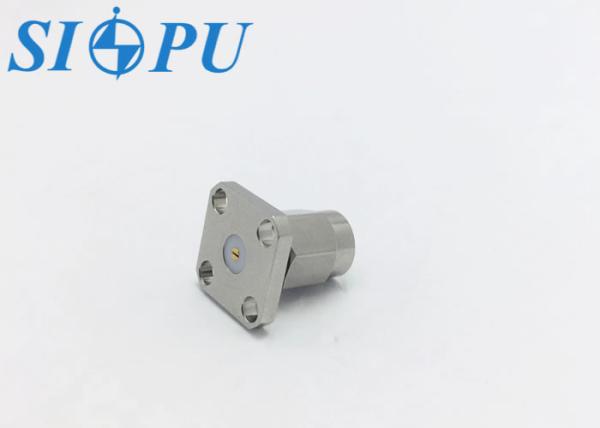

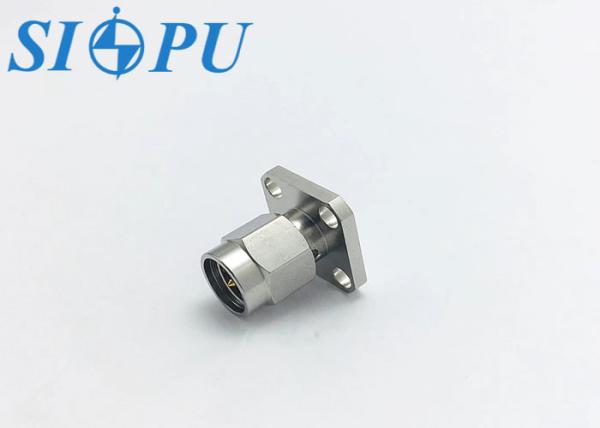

Product Appearance

SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount

Important Technical Parameter

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.05√F(GHZ)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500times

Materials and Surface Treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel,passivating

Sealing ring

Silicon rubber

Product Image Gallery

SMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange MountSMA Female RF Microwave Connector – Microstrip Type, Stainless Steel, Flange Mount
