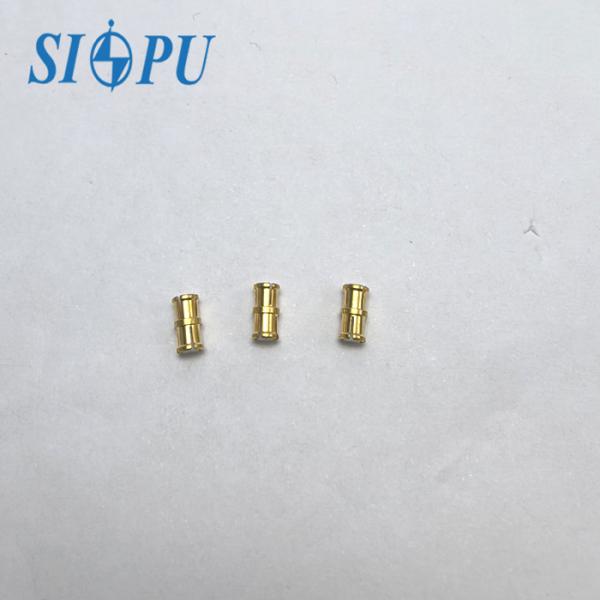

SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
SMP Female to SMP Female RF Coaxial Adapter
Specifications
Brand Name :
SIPU
Model Number :
SMP-KK1
Certification :
ISO9001-2017, RoHS, CE
Place of Origin :
CHINA
MOQ :
50
Price :
＄1.0-3.0
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs/year
Delivery Time :
5-6 Weeks
Packaging Details :
master carton
Product name :
SMP Female to Female RF Coaxial Adapter
Characteristic impedance :
50Ω
Dielectric withstanding voltage :
500V
Insulation resistance :
≥5000MΩ
Durability :
500 times
Gender :
Female
Type :
Straight
Material :
Beryllium bronze
Plating :
Gold
Description

SMP Female to SMP Female RF Coaxial Adapter

SMP Female to SMP Female RF Coaxial Adapter

Product Overview:

The SMP series is an ultra-miniature RF coaxial connector featuring a push-on, self-locking design, ideal for high-frequency, high-density, and high-data-rate applications. It is commonly used in compact RF modules, test systems, and quantum computing setups.

Application Areas:

Broadband installations, test and measurement, antenna systems, aerospace, and quantum computing.

Product Features:

  • Both ends feature SMP-K (female) interfaces, with symmetrical mechanical structure, allowing for non-directional use.
  • Offers low insertion loss, excellent RF performance, light weight, and high resistance to environmental stress.
  • Suitable for applications up to 40 GHz.

Key Technical Specifications

Electrical Property

 Temperature Range -65～+125℃

Characteristic Impedance

 50Ω Frequency Range DC-40GHz

Dielectric Withstanding Voltage

 500V VSWR ≤1.5

Insulation Resistance

 ≥5000MΩ Insertion Loss ≤0.07SMP Female to SMP Female RF Coaxial AdapterdB

Contact Resistance

 Center Conductor ≤6.0mΩ Mechanical Property
Outer Conductor ≤2.0mΩ Durability 500 Cycles

Materials & Finish

Center Conductor

Beryllium Bronze, Gold plated

 Insulating Medium PTFE

Outer Conductor

 Beryllium Bronze, Gold Plated Sealing Ring N/A

SMP Female to SMP Female RF Coaxial AdapterSMP Female to SMP Female RF Coaxial Adapter
