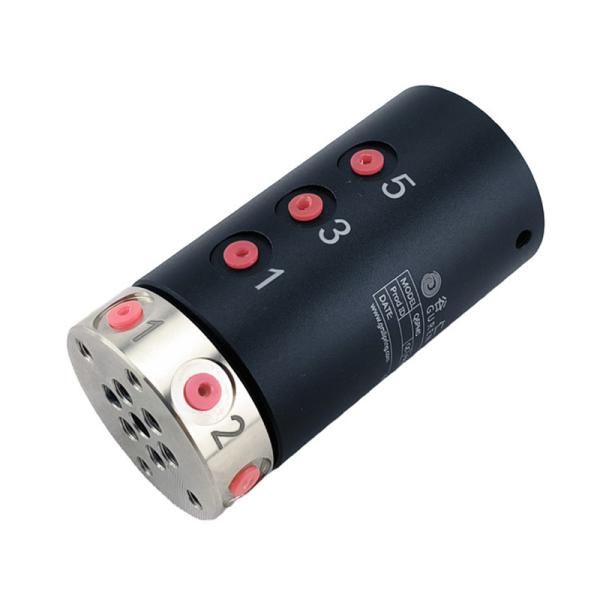

6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
Specifications
Brand Name :
GuRen
Model Number :
Q6PM5
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Number of channels :
6 channels
Inner diameter :
5 mm
Outer diameter :
38 mm
High :
76 mm
Housing Material :
Aluminum
Applicable trachea :
4～6mm
Interface Specifications :
M5
Description
6 in 6 out gas rotary slip ring M5 connector rotary gas high speed
Product Specifications
Attribute Value
Number of channels 6 channels
Inner diameter 5 mm
Outer diameter 38 mm
Height 76 mm
Housing Material Aluminum
Applicable trachea 4～6mm
Interface Specifications M5

Q6PM5 gas rotary slip ring, M5 interface improves space utilization by 40%; independent pipelines avoid cross-gas communication, triple-proof structure supports -30℃ cold start, and is suitable for 3C manufacturing equipment.

Product Features
  • Six-channel rotary joint, with M5 precision thread interface, suitable for 4-6mm micro air pipe, specially designed for micro equipment and applications requiring high-precision connection.
  • Independent pipeline isolation medium, three-proof structure, moisture-proof/dust-proof/antifreeze support -30℃ cold start.
  • Provide six channels while maintaining a small size, compact structure, easy to install.
  • Mainly used for transmitting low-pressure gases such as compressed air and nitrogen, with excellent sealing performance to ensure no leakage.
  • The maximum speed can reach 300RPM, with a designed service life of 20 million revolutions, precise and reliable, suitable for high-precision equipment.
Technical Parameters
Parameter Name Parameter Value
Transmission medium Gas (liquid can be customized)
Working life 20 million revolutions (reference value)
Maximum speed 300RPM
Overpressure -90KPa～1MPa or vacuum
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque and number of channels are positively correlated)
Product Dimensions
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
Product Images
6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM 6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM 6 In 6 Out Gas Rotary Union OD 38mm 6 Channels High Speed 300RPM
Application Scenarios

It is mainly used in occasions where 360-degree continuous rotation is required and air pressure, vacuum, power supply and signal cannot be interrupted: such as various non-standard automation equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, laminating equipment, electronic semiconductor industrial automation equipment; optoelectronic flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, rotary workbench, wind power equipment, engineering machinery, rotary filling machine, capsule filling machine, AGV lifting platform, etc.
