2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
Specifications
Brand Name :
GuRen
Model Number :
Q2P03-50119
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Circuit Number :
2 circuits
Inner diameter :
50mm
Outer diameter :
119mm
High :
103mm
Housing Material :
Aluminum
Service Life :
20 million rotations
Description
2-Channel Large-Aperture Gas Slip Ring, Inner Hole 50mm, Outer Diameter 119mm, Aluminum Alloy Shell
Product Attributes
Attribute Value
Circuit Number 2 circuits
Inner diameter 50mm
Outer diameter 119mm
Height 103mm
Housing Material Aluminum
Service Life 20 million rotations
Product Description

The Q2P03-50119 large-diameter air slip ring is specially designed for large-diameter bearings with an inner diameter of 50mm. The fixed holes are evenly distributed for easy installation.

Product Features
  • Dual-channel design with large inner hole (50mm) and outer diameter up to 119mm
  • Sealing surface and sealing ring made of special wear-resistant, corrosion-resistant materials for extended lifespan
  • Compatible with various gas media including air, hydrogen, nitrogen, chemical mixed gas, vacuum, and negative pressure
  • High-speed operation up to 300RPM with service life of 20 million revolutions
Technical Parameters
Parameter Value
Transmission medium Gas (liquid can be customized)
Working life 20 million revolutions (reference value)
Maximum speed 300RPM
Overpressure range -90KPa～1MPa or vacuum
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque and number of channels are positively correlated)
Product Dimensions
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell 2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell

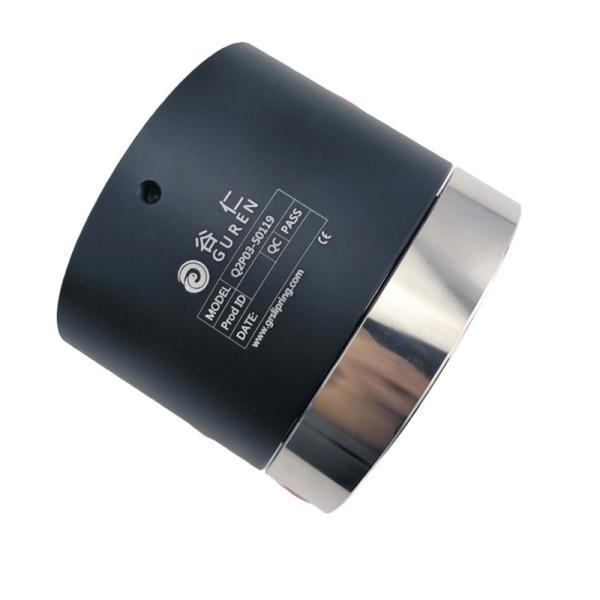

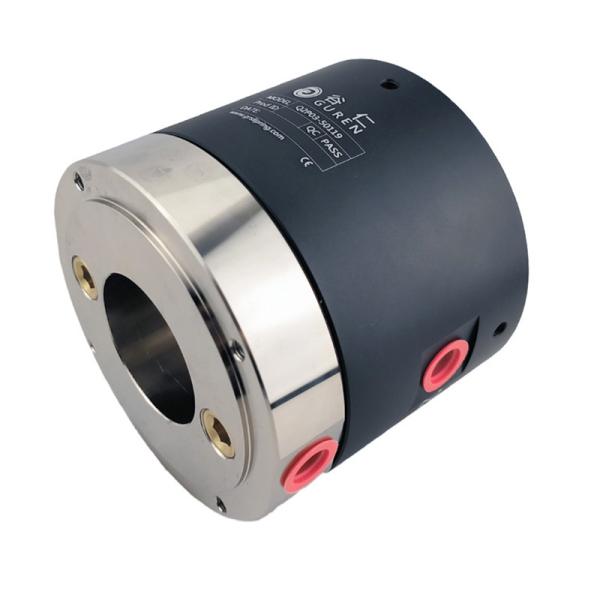

Product Images
2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell 2 Circuits Large Aperture Gas Slip Ring OD 119mm Aluminum Alloy Shell
Application Scenarios

This slip ring is ideal for applications requiring 360-degree continuous rotation while maintaining uninterrupted air pressure, vacuum, power supply, and signal transmission. Common applications include:

  • Non-standard automation equipment
  • Lithium battery manufacturing equipment
  • Mobile phone testing and manufacturing equipment
  • Laser equipment and coating machines
  • Soft-pack battery packaging film equipment and laminating equipment
  • Electronic semiconductor industrial automation
  • Optoelectronic display manufacturing (LCD/LCM/TP/OLED/PDP)
  • Testing equipment and rotary worktables
  • Wind power equipment and engineering machinery
  • Rotary filling machines and capsule filling machines
  • AGV lifting platforms
