Specifications
Brand Name :
GuRen
Model Number :
Q2PM5-GRA0400
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Circuit Number :
2-in, 2-out
Inner diameter :
7mm
Outer diameter :
62mm
High :
56.5mm
Sealing Type :
O-Ring
Service Life :
20 million rotations
Speed :
600 rpm
Tracheal size :
M5
Description
2-Channel High-Speed Pneumatic Slip Ring
Flange design, 600 RPM high-speed operation for demanding industrial applications
Product Overview
This 2-channel high-speed pneumatic slip ring features a high-strength aluminum alloy housing and flange mounting design, capable of operating at speeds up to 600 RPM. The air passages utilize an end-in, end-out configuration compatible with standard M5 interface air hoses, withstanding maximum working pressure of 0.8 MPa. This provides a stable and reliable bidirectional pneumatic connection solution for high-speed rotating equipment.
Key Features
  • 600 RPM High-Speed Rotation: Optimized for high-speed rotating equipment, meeting demanding speed requirements for automation, sorting, and high-speed testing applications
  • Flange Mounting Design: Provides stable and reliable mounting, facilitating quick integration into equipment rotating ends while ensuring structural stability during high-speed operation
  • Compact End-In/End-Out Layout: Air ports concentrated on the end face create a compact structure that saves radial space and facilitates pipeline connection in confined spaces
  • 0.8 MPa Reliable Pressure Resistance: Stably withstands high working air pressure with excellent sealing performance, ensuring no leakage during high-speed rotation and continuous power transmission
Technical Parameters
Parameter Value
Transmission medium Air
Working life 20 million revolutions (reference value)
Maximum speed 600 RPM
Pressure range 0.8 MPa
Operating temperature -30℃ to +80℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5 N.m (reference value, torque increases with channel count)

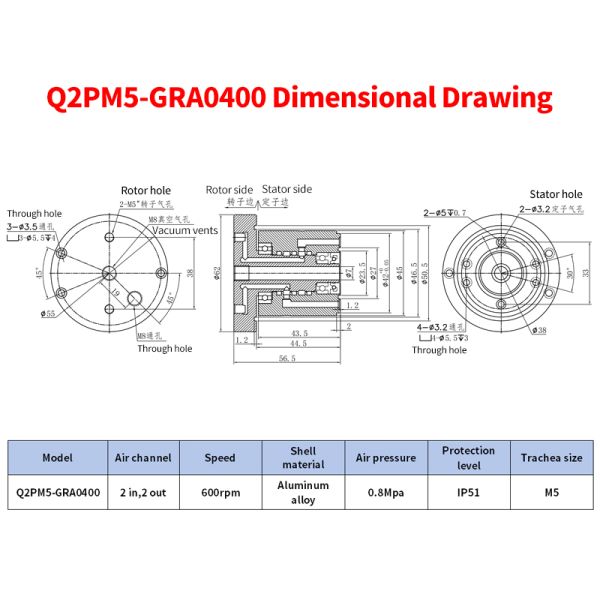

Product Dimensions
2-Channel High-Speed Pneumatic Slip Ring with Flange Mounting Design and 0.8 MPa Pressure Resistance for Gas Rotary Union Applications
Application Scenarios
  • High-speed sorting and packaging equipment: Synchronized pneumatic control of rotating sorting arms and high-speed filling heads
  • Automated assembly and processing: Power transmission for pneumatic grippers on high-speed rotating workbenches
  • High-speed testing and centrifugal equipment: Test platforms requiring pneumatic actuation or cooling while rotating
  • Robot end effectors: Power supply for pneumatic tools (such as grippers and spray valves) on high-speed robot wrists
Frequently Asked Questions
What is the expected lifespan and reliability at high speeds?
This product uses bearings specifically designed for high-speed operation and low-friction, long-life seals, and has passed rigorous high-speed durability tests. Under standard operating conditions (pressure below 0.8 MPa), it can guarantee a stable operating life of tens of millions of revolutions.
Is the M5 interface compatible with other sizes of air tubing?
M5 is a standard metric threaded interface and can be easily adapted to hoses of different diameters, such as 4mm or 6mm, using adapters, providing excellent connection flexibility.
Does it support higher operating pressures?
The standard model has a maximum operating pressure of 0.8 MPa. If operation at higher pressures is required, a special sealing solution and structural reinforcement will be needed. Please contact us to assess the feasibility of customization.
