3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
Specifications
Brand Name :
GuRen
Model Number :
Q3PM5-A5615
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Circuit Number :
3 channels
Inner diameter :
solid
Outer diameter :
38mm
High :
55mm
Pore ​​size :
M5
Air pressure :
0.8MPa
Description
3-Inlet, 3-Outlet Rotary Joint Connector
200 RPM rotation speed with IP51 protection rating
Product Overview
This 3-in-3-out pneumatic rotary joint connector is a high-performance miniature pneumatic slip ring designed for compact rotary equipment requiring multiple independent gas transmissions. Featuring an aluminum alloy housing with an outer diameter of only 38mm and height of 55mm, it provides an extremely compact structure with three independent M5 interface air passages.
Key Features
  • 3 Independent Air Paths: Three completely independent M5 interface air paths allow simultaneous control of multiple pneumatic components without interference
  • Ultra-Compact Design: 38mm outer diameter and 55mm height for easy integration into space-constrained equipment
  • High-Speed Performance: Precision dynamic sealing technology ensures leak-free operation at 200 RPM and 0.8 MPa pressure
  • Durable Construction: Lightweight aluminum alloy housing with IP51 protection against dust and dripping water
Technical Specifications
Parameter Value
Transmission Medium Air
Working Life 20 million revolutions (reference value)
Maximum Speed 200 RPM
Pressure Range 0.8 MPa
Operating Temperature -30℃ to +80℃
Operating Humidity 0-85% RH
Protection Level IP51
Shell Material Aluminum Alloy
Rotational Torque 0.5 N.m (reference value, increases with channel count)

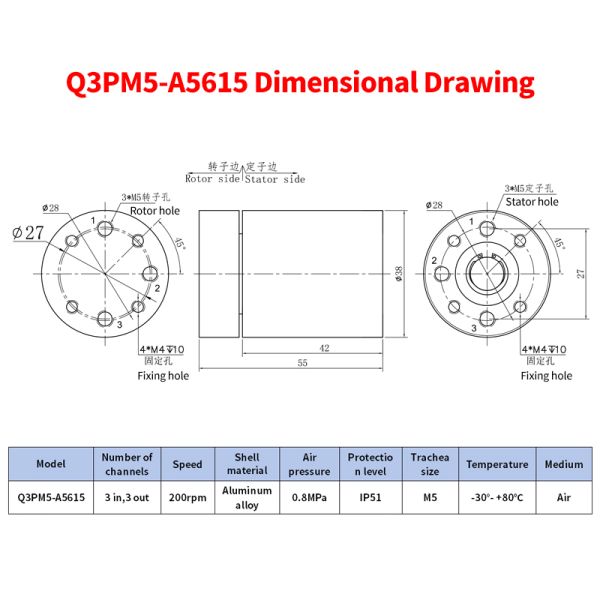

Product Dimensions
3-inlet 3-outlet Gas Rotary Union with 200rpm Speed and IP51 Protection for Compact Pneumatic Systems
Application Scenarios
  • Rotary Pneumatic Grippers: Pneumatic control of multi-station rotary grippers in automated assembly and testing equipment
  • Robot End Effector (EOAT): Power transmission for multiple pneumatic grippers and vacuum suction cups in robotic wrists
  • Packaging and Sorting Machinery: Pneumatic valves and air blowing for rotary filling heads and labeling machines
  • Small Rotary Tables: Multi-channel pneumatic signal transmission for laboratory equipment and precision assembly turntables
Frequently Asked Questions
Is the M5 connector compatible with 4mm or 6mm tubing?
The M5 is a standard threaded connector, typically used with 4mm or 6mm quick-connect fittings. You can select the appropriate M5 adapter based on tubing specifications for high flexibility.
Does the product support vacuum (negative pressure) applications?
Yes. The air circuit sealing design is compatible with both positive and negative pressure (vacuum), suitable for vacuum adsorption scenarios. We recommend keeping maximum negative pressure below -90 KPa for optimal sealing.
Can the three air circuits operate simultaneously at different pressures?
Yes. Each air circuit is completely independent. You can set different operating pressures (≤0.8 MPa) for each channel, achieving multi-pressure system integration.
What is the product's rotational resistance (starting torque)?
At rated pressure, the starting torque is typically less than 0.05 N·m, having minimal impact on drive motor load, making it suitable for small servo motors or stepper motor drives.
What exactly does the IP51 protection rating protect against?
IP51 indicates complete dust protection (preventing dust intrusion) and protection against vertical dripping water. It is suitable for general industrial workshops, but not for direct spraying or immersion environments.
