Single Channel Pneumatic Rotary Joint Aluminum Alloy Housing 300rpm Speed
Single Channel Pneumatic Rotary Joint Aluminum Alloy Housing 300rpm Speed
Specifications
Brand Name :
GuRen
Model Number :
Q1P04
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Circuit Number :
1circuits
Speed :
300 RPM
Housing Material :
Aluminum
Sealing Type :
O-Ring
Vibration Resistance :
10g@10~2000Hz
Service Life :
20 million rotations
Description
Single Channel Pneumatic Rotary Joint Aluminum Alloy Housing 300rpm Speed
Product Specifications
Attribute Value
Circuit Number 1circuits
Speed 300 RPM
Housing Material Aluminum
Sealing Type O-Ring
Vibration Resistance 10g@10~2000Hz
Service Life 20 million rotations
Product Description

Q1P04 pneumatic rotary joint is a single-channel gas slip ring joint that can rotate 360 degrees continuously and can transmit gas media such as air, steam, vacuum, etc. It can be connected to 12-16mm gas pipes.

Product Features
  • Single channel air pipe rotary joint, G1/2 thread air joint
  • Can be combined to pass a variety of gas media, and can also be customized to achieve liquid and electrical passing
  • Aluminum alloy shell, small product quality and durable
  • Maximum speed of 250RPM, suitable for most machines and equipment that require rotary air passing
Technical Parameters
Parameter name Parameter Value
Transmission medium Gas (liquid can be customized)
Working life 20 million revolutions (reference value)
Maximum speed 300RPM
Overpressure -90KPa～1MPa or vacuum
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m(reference value, torque and number of channels are positively correlated)

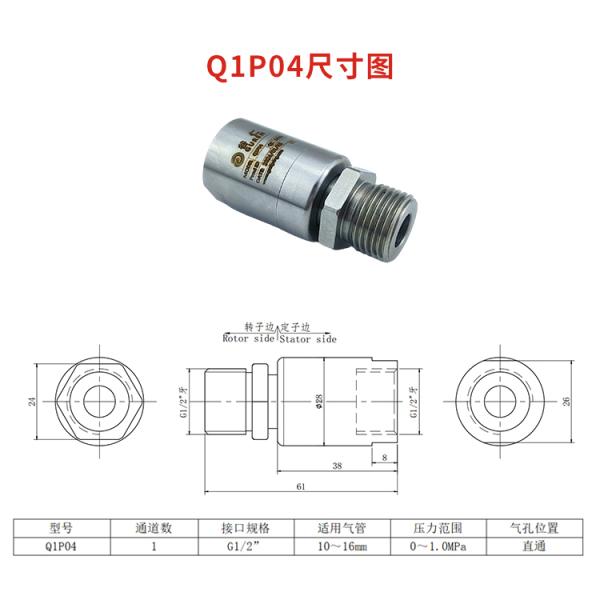

Product Dimensions
Single Channel Pneumatic Rotary Joint Aluminum Alloy Housing 300rpm Speed
Application Scenarios

It is mainly used in occasions where 360-degree continuous rotation is required and air pressure, vacuum, power supply and signal cannot be interrupted: such as various non-standard automation equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, laminating equipment, electronic semiconductor industrial automation equipment; optoelectronic flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, rotary workbench, wind power equipment, engineering machinery, rotary filling machine, capsule filling machine, AGV lifting platform, etc.
