Specifications
Brand Name :
GuRen
Model Number :
Q2P01-2086
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Circuit Number :
2 circuits
Inner diameter :
20mm
Outer diameter :
86mm
Sealing Type :
O-Ring
Vibration Resistance :
10g@10~2000Hz
Service Life :
20 million rotations
Description

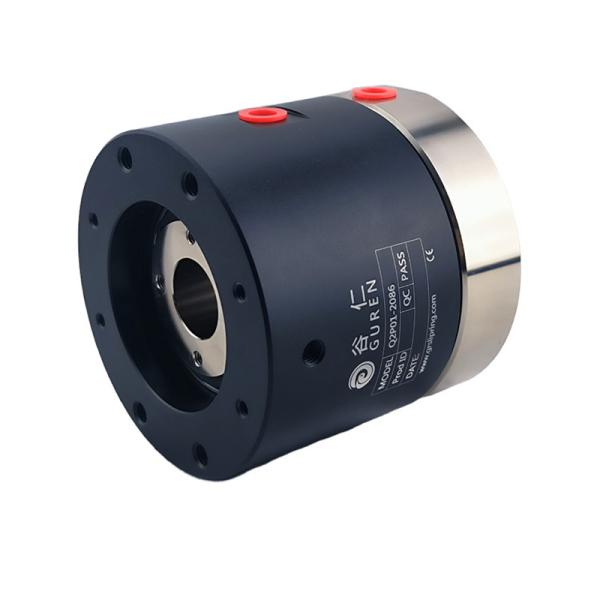

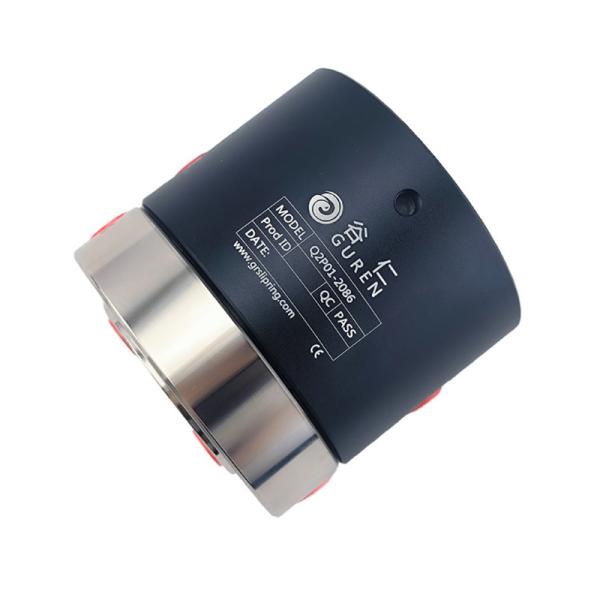

Two-in-two-out Gas Line Rotary Joint, ID 20mm, OD 86mm
The Q2P01-2086 gas path rotary joint is a high-performance gas slip ring with 20mm inner diameter and 86mm outer diameter. Featuring O-ring sealing technology, it reliably transmits compressed air, hydrogen, nitrogen, chemical mixed gases, and vacuum conditions.
Product Specifications
Attribute Value
Circuit Number 2 circuits
Inner Diameter 20mm
Outer Diameter 86mm
Sealing Type O-Ring
Vibration Resistance 10g@10~2000Hz
Service Life 20 million rotations
Key Features
  • 20mm inner bore with multiple fixing holes for convenient over-shaft installation
  • Anodized aluminum alloy housing for enhanced durability
  • Independent gas channel design prevents internal gas leakage
  • High-quality bearings with friction-resistant design for extended 20 million rotation lifespan
Technical Parameters
Parameter Value
Transmission Medium Gas (liquid transmission available as custom option)
Working Life 20 million rotations (reference value)
Maximum Speed 300 RPM
Pressure Range -90KPa to 1MPa (including vacuum operation)
Operating Temperature -30℃ to +80℃
Operating Humidity 0-85% RH
Protection Level IP51
Housing Material Aluminum Alloy
Rotational Torque 0.5N.m (reference value, varies with channel count)
Product Dimensions
300 RPM Gas Rotary Union ID 20mm OD 86mm Can Pass Negative Pressure 300 RPM Gas Rotary Union ID 20mm OD 86mm Can Pass Negative Pressure 300 RPM Gas Rotary Union ID 20mm OD 86mm Can Pass Negative Pressure 300 RPM Gas Rotary Union ID 20mm OD 86mm Can Pass Negative Pressure 300 RPM Gas Rotary Union ID 20mm OD 86mm Can Pass Negative Pressure
Application Scenarios
Designed for applications requiring 360° continuous rotation with uninterrupted gas pressure, vacuum, power, and signal transmission. Ideal for:
  • Non-standard automation equipment
  • Lithium battery manufacturing systems
  • Mobile phone testing and production equipment
  • Laser processing and coating machines
  • Electronic semiconductor manufacturing
  • Optoelectronic display production (LCD/LCM/TP/OLED/PDP)
  • Rotary workstations and wind power equipment
  • AGV lifting platforms and filling machines
