Specifications
Brand Name :
GUREN
Model Number :
F-WX12-4P05
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
12.4 mm
Length :
18.2mm
Installation :
Flange installation
Single channel current :
5A
Current path :
4-way
Impact strength :
100g/6ms
Description

F-WX12-4P05 4-way 5A low current rotating conductive ring! Customizable industrial-grade anti-interference transmission ring, double-layer electromagnetic shielding + gold-nickel alloy contacts, can effectively block 500MHz radio frequency interference, allowing the security ball camera to achieve a video signal-to-noise ratio of 62dB under 24V power supply, and reduce night vision picture noise by 90%.


F-WX12-4P05 low current rotating conductive ring product features:

1. Lossless power supply at the rotating end: 360° continuous rotation transmits motor power and digital signals to the device.
2. Compact anti-collision structure: 18.2mm length allows for less installation space.
3. Smooth rotation: 150RPM smooth rotation, effectively reducing the disturbance caused by rotation.
4. Anti-rust core: gold-plated cluster brush resists moisture oxidation, resistance fluctuation rate <3%.
5. Weather-resistant wire: UV-resistant Teflon wire can withstand outdoor exposure environment.


F-WX12-4P05 low current rotating conductive ring Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

22AWG Teflon wire

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm


F-WX12-4P05 low current rotating conductive ring Product Dimensions

4 Way 5A Small Current Rotating Conductive Slip Ring With Compact Structure

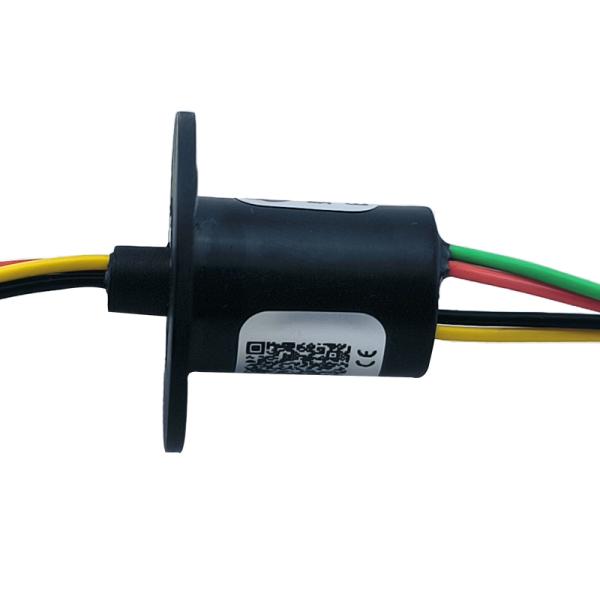

F-WX12-4P05 low current rotating conductive ring Product images

4 Way 5A Small Current Rotating Conductive Slip Ring With Compact Structure

4 Way 5A Small Current Rotating Conductive Slip Ring With Compact Structure


F-WX12-4P05 low current rotating conductive ring application

F-WX12-4P05 low current rotating conductive ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
