OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys
Specifications
Brand Name :
GUREN
Model Number :
WX12-4PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Current Rating :
2A per circuit
Voltage Rating :
240VAC/DC
Contact Material :
Gold-Gold
Operating Speed :
0-150 rpm
Protection Level :
IP51
Number Of Circuits :
4
Flange Size :
24mm
Description

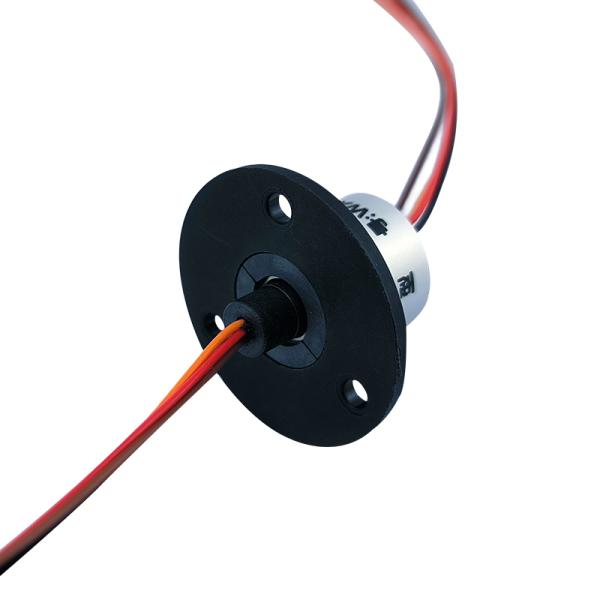

WX12-4PS is a 360 degree rotating low power cap-type slip ring. It has 4 circuit channels, each channel can pass 2A current. The product adopts AWG28# Teflon wire with high temperature resistance, high insulation and high chemical inertness.



Flange slip ring product features:

1. It can realize the transmission of current and signal without interruption during 360° forward and reverse rotation.
2. It can transmit current, weak signal, video signal, Ethernet signal, etc.
3. The contact points are gold-plated to ensure stable transmission and long-term durability of the product
4. The outer diameter of the slip ring is 12.4mm and the length is 11mm
5. Integrated injection molding, compact structure, small size and easy installation.



Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

28AWG Teflon wire (except WX-3P02)

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm



Product Dimensions

OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys


Product images

OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys

OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys

OD 12.4mm Low Power Rotary Electric Slip Ring 4 Channels 2A 150RPM For Electric Toys



Flange slip ring application

Small power cap-type slip rings are mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables, automation equipment and other products that require circuits to pass through a rotating area.
