Specifications
Brand Name :
GUREN
Model Number :
WX12-12PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Working Temperature :
-20℃ to 80℃
Contact Material :
Gold-Gold
Inner Diameter :
12.7mm
Contact Resistance :
less than 10mΩ
Number Of Circuits :
12
Brush wire :
Au-Ni alloy plating
Description

WX12-12PS cap-type slip ring provides 12-channel circuits, each supporting 2A current, using Teflon insulated wire (AWG28#), high temperature resistance, and short circuit prevention. It is specially designed for industrial low-power equipment such as robot arm joints and automated turntables to achieve 360° free rotation of power supply and signal transmission.



Flange slip ring product features:

1. Made of PBT engineering plastic, it has excellent insulation, high temperature resistance and toughness.
2. Supports transmission: current, analog signals, low-frequency digital signals, etc.
3. Suitable for use in -20° to 80° environments.
4. Compact size design: outer diameter 12.4mm, length 19.8mm.
5. Metal treatment of contact points to ensure transmission stability.



Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

28AWG Teflon wire (except WX-3P02)

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm

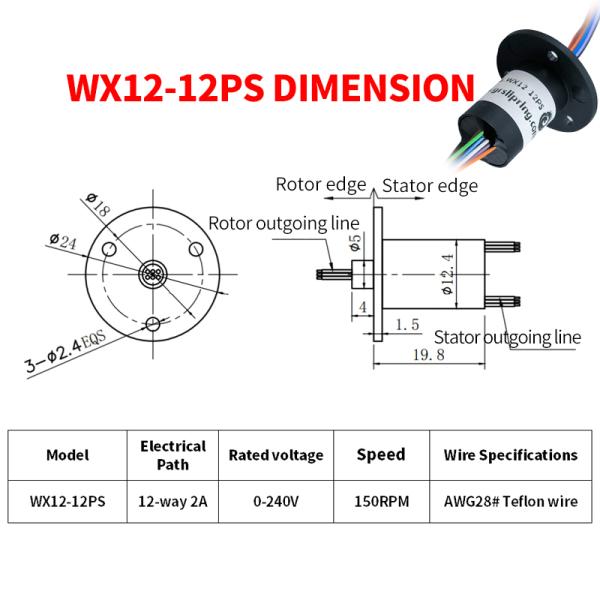

Product Dimensions

12 Circuits 2A Mini Slip Ring With Flange Small Installation Space


Product images

12 Circuits 2A Mini Slip Ring With Flange Small Installation Space

12 Circuits 2A Mini Slip Ring With Flange Small Installation Space

12 Circuits 2A Mini Slip Ring With Flange Small Installation Space



Flange slip ring application

WX12-12PS cap-type slip ring products are suitable for drones, stabilizers, smart homes, security monitoring, photography and video, robots, test instruments, turntables and automation equipment.
