Specifications
Brand Name :
GUREN
Model Number :
WX12-3P02
Certification :
ISO9001.CE.RoHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Installation :
Flange installation
Mounting flange aperture :
M3
Single channel current :
2A
Signal bandwidth :
DC~10MHz
Crosstalk Suppression :
-60dB@1MHz
Impact strength :
100g/6ms
Description

WX12-3P02 is a miniature flange conductive ring. It has 3 wire circuit channels, can pass 2A current, and uses AWG24# Teflon wire.



Flange slip ring product features:

1. It can achieve 360° rotation without winding.
2. It can pass current, analog signals, and low-frequency digital signals.
3. The contact point uses gold-gold material to ensure stable and durable transmission.
4. It has the advantages of low torque, low loss, low electrical noise, and maintenance-free.
5. The outer diameter is 12.4mm.
6. The integrated structure design is easy and convenient to install.



Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

28AWG Teflon wire (except WX-3P02)

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm



Product Dimensions

OD 12.4mm 3 Circuit 2A Rotating Slip Ring With Flange Drones And Robot Slip Ring

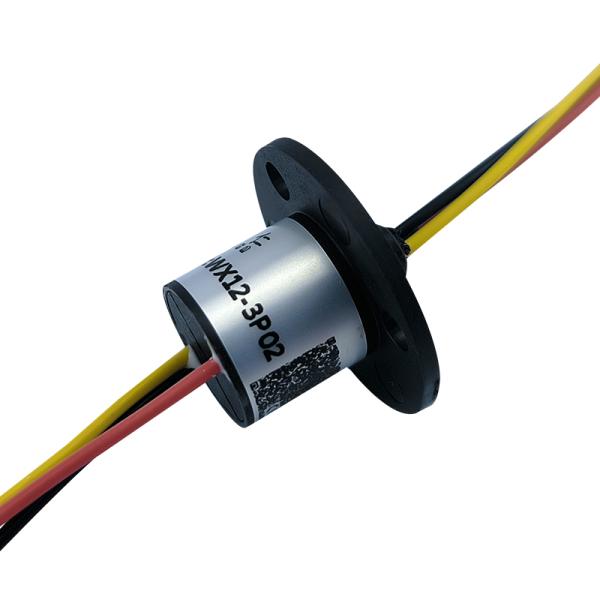

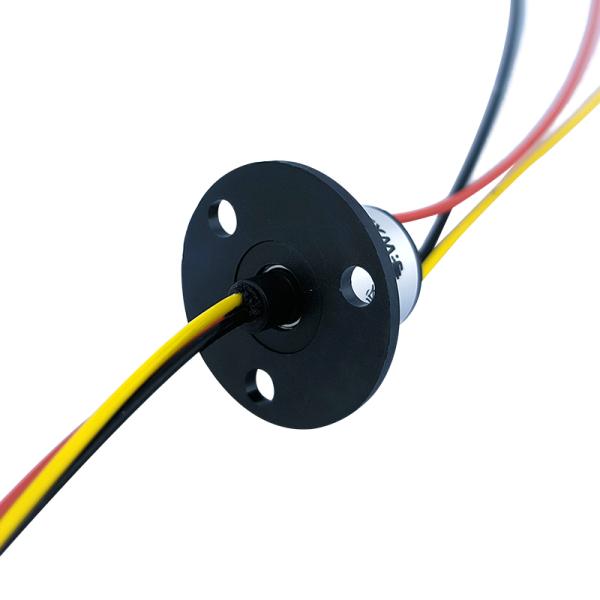

Product images

OD 12.4mm 3 Circuit 2A Rotating Slip Ring With Flange Drones And Robot Slip Ring

OD 12.4mm 3 Circuit 2A Rotating Slip Ring With Flange Drones And Robot Slip Ring

OD 12.4mm 3 Circuit 2A Rotating Slip Ring With Flange Drones And Robot Slip Ring


Flange slip ring application

Flange type capsule slip ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
