5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type
Specifications
Brand Name :
GUREN
Model Number :
F-WX12-2P05
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
12.4 mm
Length :
18.2mm
Radial runout tolerance :
≤0.1mm
Single channel current :
5A
Current path :
2-way
Vibration resistance :
10g@5~500Hz
Description

F-WX12-2P05 low-power flange conductive ring, expert in 360° power supply in small space, cap-type structure saves 70% installation space, 2 independent 5A channels equipped with AWG22# Teflon wire, temperature resistant to 80℃ and wear-resistant, solves the problem of entanglement of power supply cables for monitoring PTZ rotation, and can be customized for 1080P high-definition signal with 0 interference transmission.


F-WX12-2P05 low-power flange conductive ring product features:

1. Rotary power supply: 2 channels transmit current or signal independently, 360° rotation without disconnection risk.
2. Coin-level thin space: 12.4mm diameter saves 80% of the use space.
3. Silent high-speed operation: Noise <25dB at 150RPM.
4. Gold-plated contact anti-oxidation: Special cluster brush structure suppresses arc, and current transmission is more stable.
5. Flame-retardant wire protection: Teflon wire is UL94 V-0 certified to prevent electrical fires.
6. Environmental compliance certification: ROHS certification ensures that the product is free of heavy metal pollution.


F-WX12-2P05 low-power flange conductive ring Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

22AWG Teflon wire

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm


F-WX12-2P05 low-power flange conductive ring Product Dimensions

5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type

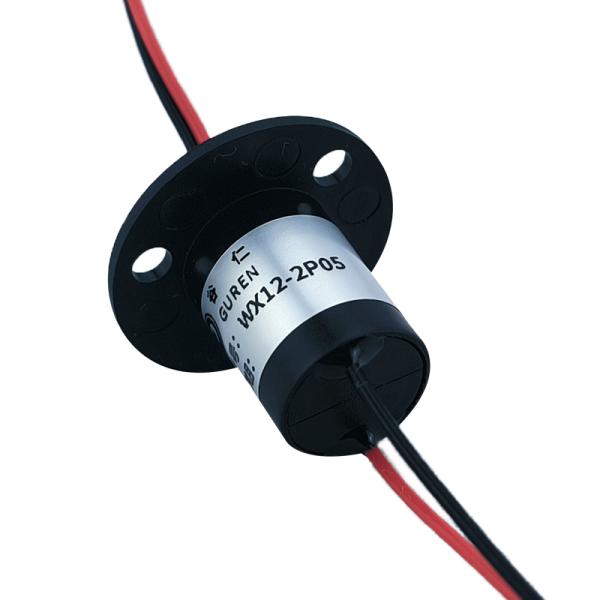

F-WX12-2P05 low-power flange conductive ring Product images

5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type

5A Low Power Flanged Conductive Slip Ring 2 Wire Slip Ring Cap Type


F-WX12-2P05 low-power flange conductive ring application

WX12-2P05 low-power flange conductive ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
