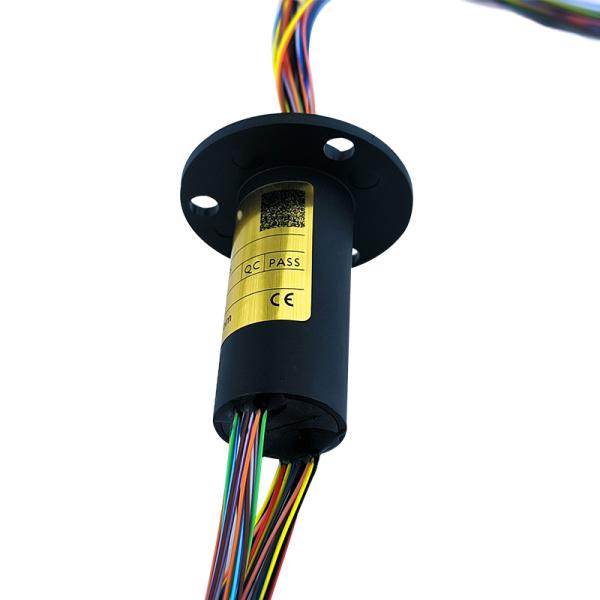

36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
Specifications
Brand Name :
GUREN
Model Number :
WX22-36PS
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
22mm
Length :
54.5mm
Radial runout tolerance :
≤0.1mm
Single channel current :
2A
Sealing ring :
Fluororubber (FKM)
Vibration resistance :
10g@5~500Hz
Description

Accurately match low power requirements! WX22-36PS miniature flange collector ring provides 36 2A current channels, the conductor is standard AWG28# (0.32mm²) Teflon tinned copper wire, and low contact resistance ensures efficient energy transmission. It is used in 12V/24V low voltage systems such as rotating LED lights and small test equipment.



WX22-36PS miniature flange collector ring product features:

1. 360° rotation anti-winding: ensure the stability of current and signal transmission, support the transmission of analog signals and low-frequency data.
2. Integrated structural design: one-piece injection molding, small slip ring size, diameter 22mm, length 54.5mm.
3. Fast rotation speed, standard speed is 150RPM per minute
4. Gold-plated cluster brush technology: multi-contact gold-plated brush wire, strong conductivity, excellent signal transmission
5. High-quality Teflon wire: has strong corrosion resistance, strong insulation, long service life, etc.
6. The product has passed CE, ROHS and other institutional certifications.



WX22-36PS miniature flange collector ring Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

28AWG Teflon wire (except WX-3P02)

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm



WX22-36PS miniature flange collector ring Product Dimensions

36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys


WX22-36PS miniature flange collector ring Product images

36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys

36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys

36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys



WX22-36PS miniature flange collector ring application

WX22-36PS miniature flange collector ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
