Specifications
Brand Name :
GUREN
Model Number :
F-WX22-3P30
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
22mm
Length :
45mm
Installation :
Flange installation
Single channel current :
30A
Current path :
3-way
Contact point hardness :
HV 150~200
Description
OD 22mm 3-Way 30A High Current Flange Rotating Collector Ring
Product Specifications
Attribute Value
Outer diameter 22mm
Length 45mm
Installation Flange installation
Single channel current 30A
Current path 3-way
Contact point hardness HV 150~200
Product Description

The F-WX22-3P30 high current flange rotating collector ring features a multi-point contact design. With conductive performance decay of less than 3% after 1 million revolutions, it extends the replacement cycle of rotating joints in automated production line inspection equipment to 3 years while reducing maintenance costs by 70%.

Key Features
  • Continuous power transmission: Supports stable power supply at 150rpm rotation speed
  • Flange installation: Designed for convenient mounting
  • High-durability contacts: Gold-plated cluster brush structure enables continuous rotation
  • Premium wiring: AWG12# Teflon wire for heat resistance, wear resistance, and flame retardancy
  • Certified quality: CE and ROHS certified for international standards compliance
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜10mΩ
Rated voltage 0～240VDC/VAC
Wire Specifications 12#AWG Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -20℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm

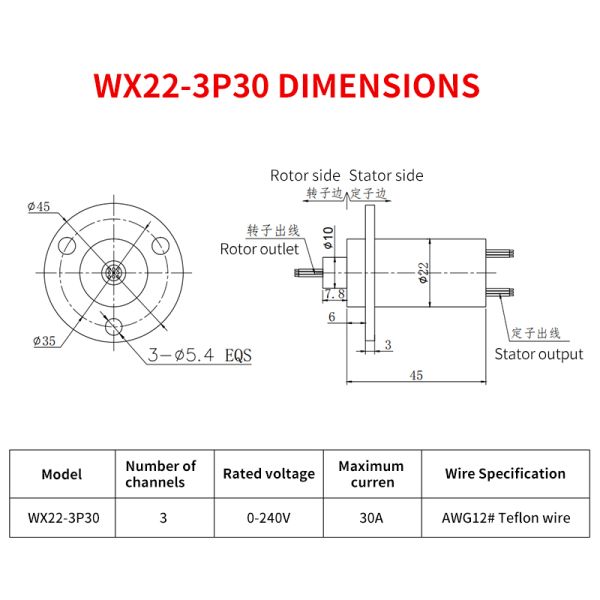

Product Dimensions
3 Wire Slip Ring 30A High Current Slip Ring With Flange 150rpm Rotation Speed

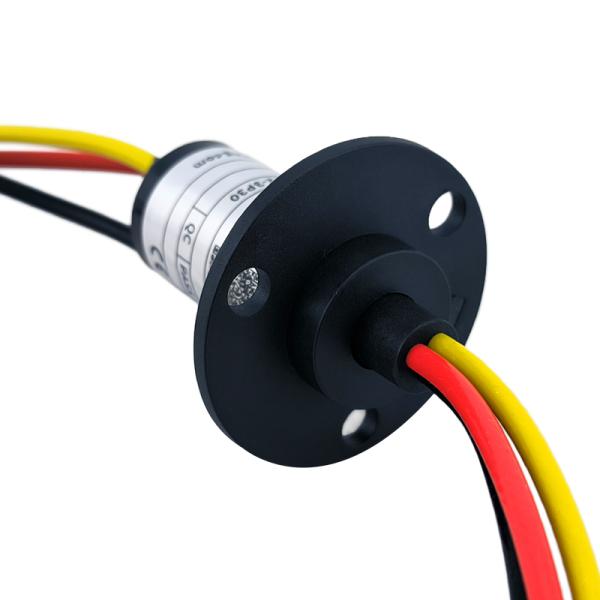

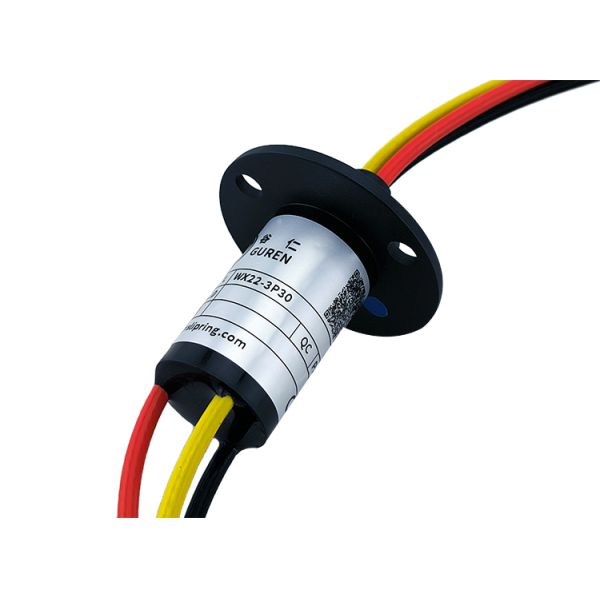

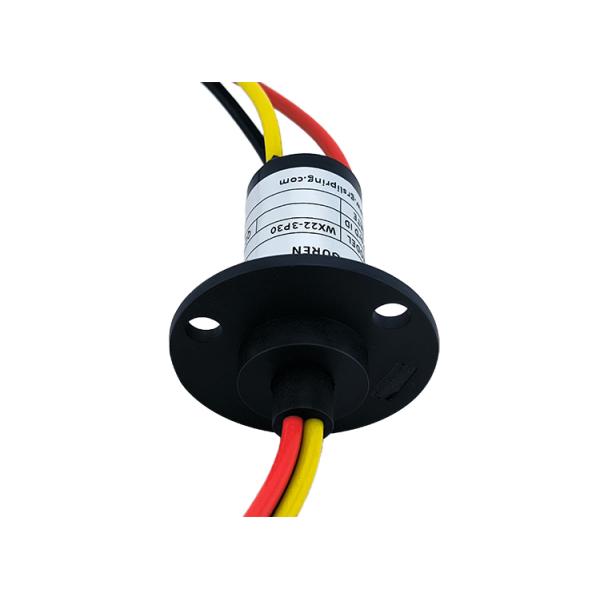

Product Images
3 Wire Slip Ring 30A High Current Slip Ring With Flange 150rpm Rotation Speed 3 Wire Slip Ring 30A High Current Slip Ring With Flange 150rpm Rotation Speed
Applications

The F-WX22-3P30 high current flange rotating collector ring is designed for use in:

  • Drones and stabilizers
  • Smart home devices
  • Security monitoring systems
  • Photography and videography equipment
  • Robotics and automation systems
  • Test instruments and turntables
