Specifications
Brand Name :
GUREN
Model Number :
F-WX22-2P30
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
22mm
Length :
45mm
Installation :
Flange installation
Single channel current :
30A
Current path :
2-way
Signal bandwidth :
DC~10MHz
Description

F-WX22-2P30 2-way 30A high current flange slip ring. Customizable safety explosion-proof grade conductive path, explosion-proof grade products use flame-retardant Teflon wire, no spark precipitation during short circuit, suitable for chemical workshop rotating warning light explosion-proof requirements.


F-WX22-2P30 2-way 30A high current flange slip ring product features:

1. Support low-temperature rotation transmission: Stable transmission of current and signals in -20℃ environment.
2. Anti-condensation structure: The one-piece injection-molded shell can effectively block the intrusion of water vapor in the cold storage.
3. High speed: The maximum speed of the slip ring is 150rpm, and the total life span reaches 2 million revolutions.
4. Low-temperature conductivity optimization: Special gold-plated cluster brushes maintain low-temperature contact stability.
5. Cold-resistant wire: High-quality Teflon wire is used, which will not become brittle even at -50℃.


F-WX22-2P30 2-way 30A high current flange slip ring Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

12#AWG Teflon wire

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm


F-WX22-2P30 2-way 30A high current flange slip ring Product Dimensions

OD 22mm 2 Wire Slip Ring 30A High Current Electrical Slip Ring With 12AWG Teflon Wire

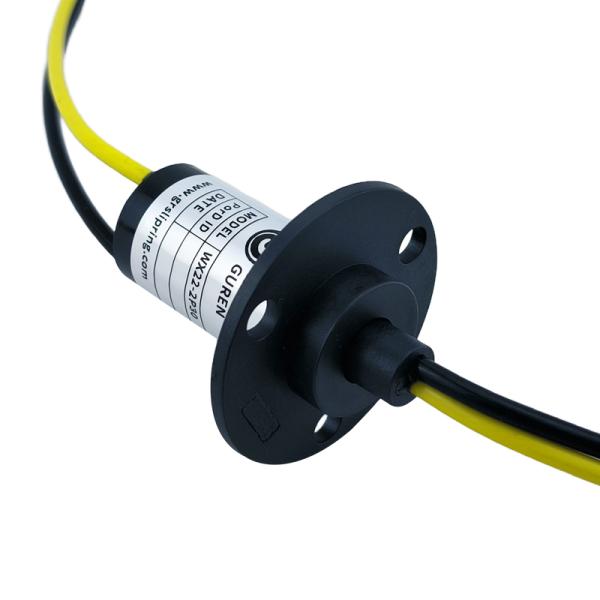

F-WX22-2P30 2-way 30A high current flange slip ring Product images

OD 22mm 2 Wire Slip Ring 30A High Current Electrical Slip Ring With 12AWG Teflon Wire

OD 22mm 2 Wire Slip Ring 30A High Current Electrical Slip Ring With 12AWG Teflon Wire



F-WX22-2P30 2-way 30A high current flange slip ring application

F-WX22-2P30 2-way 30A high current flange slip ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
