Specifications
Brand Name :
GUREN
Model Number :
F-WX30-8P10
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
30mm
Length :
88mm
Installation :
Flange installation
Single channel current :
10A
Current path :
8-way
Wire Specifications :
17#AWG Teflon wire
Description
8-way 10A 360° Rotation Flange Slip Ring
Integrated injection molding, wear-resistant, insulation
Product Attributes
Attribute Value
Outer diameter 30mm
Length 88mm
Installation Flange installation
Single channel current 10A
Current path 8-way
Wire Specifications 17#AWG Teflon wire
Product Description

F-WX30-8P10 360° rotating flange slip ring, the product adopts an integrated structural design and injection molding, it has excellent performance in both pressure resistance and toughness, 8 circuit channels, suitable for production line automation and other equipment requirements.

Product Features
  • 360° signal current transmission: keep the current and signal connected in the case of rotation.
  • gold-plated contacts: The contact resistance fluctuation of the super-hard gold plating is less than 0.3%, and the signal transmission stability is good.
  • Low torque design: The rotation resistance is ≤2mN*m, making the rotation smoother, and the rotation speed can reach 150rpm.
  • Flange-type integrated structure: IP51 protection is achieved, and the service life can reach 2 million revolutions.
  • Extremely simplified installation: Flange installation is simpler and more efficient.
Performance Parameters
Parameter Name Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜10mΩ
Rated voltage 0～240VDC/VAC
Wire Specifications 17#AWG Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)
Operating temperature -20℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm

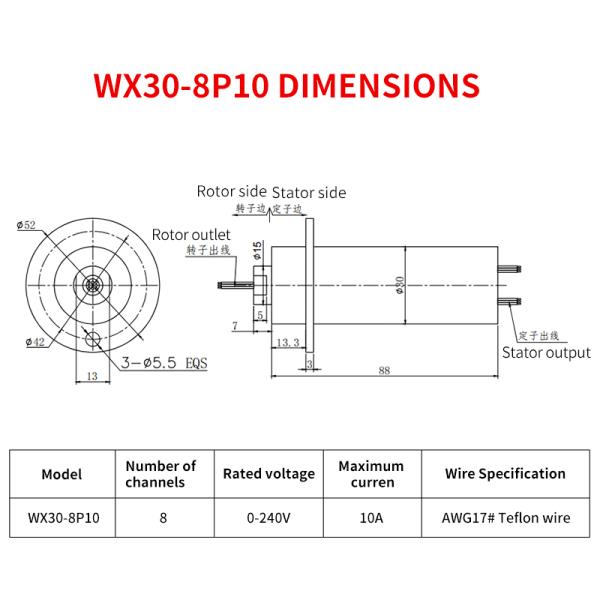

Product Dimensions
10A 8 Wire Slip Ring With Flange Wear Resistant Insulation Low Torque Design

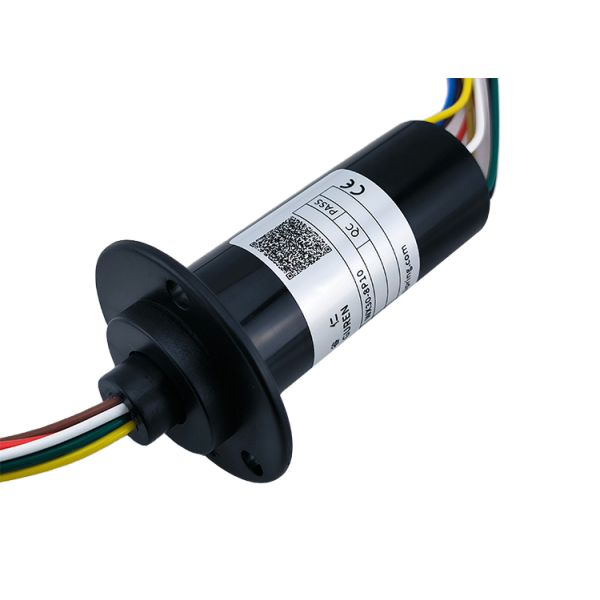

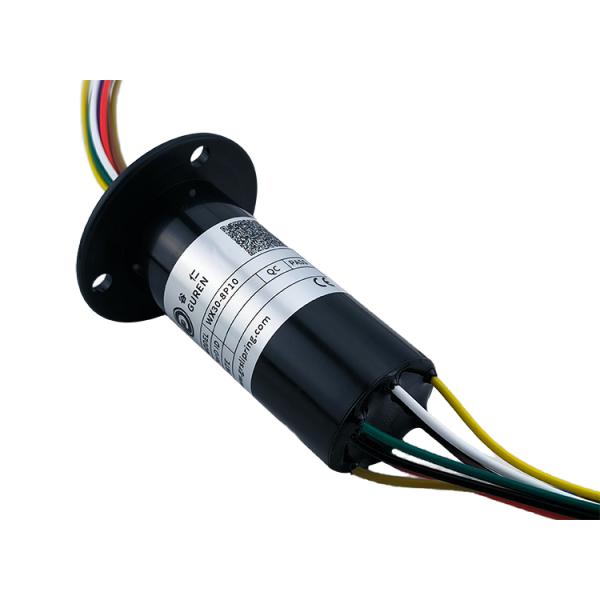

Product Images
10A 8 Wire Slip Ring With Flange Wear Resistant Insulation Low Torque Design 10A 8 Wire Slip Ring With Flange Wear Resistant Insulation Low Torque Design
Applications

F-WX30-8P10 360° rotating flange slip ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
