Specifications
Brand Name :
GUREN
Model Number :
F-WX22-4P30
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
30mm
Length :
66mm
Installation :
Flange installation
Single channel current :
30A
Current path :
4-way
Wire Specifications :
12#AWG Teflon wire
Description

F-WX30-4P30 4-way 30A high-power cap-type conductive slip ring, flange + harness management package, realize the transformation of old equipment without mechanical processing, the upgrade cost of industrial detector rotary module can be reduced by 70%, compatible with 240V mixed voltage system.


F-WX30-4P30 high-power cap-type conductive slip ring product features:

1. Rotation without winding: Achieve 360-degree rotation without winding, while maintaining stable and continuous transmission of current and signal.
2. Minimalist structural design: One-piece injection molding, compact slip ring size.
3. High-quality shell: Made of high-quality PBT engineering plastic, the shell is wear-resistant, heat-resistant and corrosion-resistant.
4. Gold-plated cluster brush technology: Multi-contact gold-plated brush wire to ensure stable transmission of current and signal.
5. High-quality Teflon wire: It has the characteristics of corrosion resistance, strong insulation and long service life.
6. The product has passed CE, ROHS and other institutional certifications


F-WX30-4P30 high-power cap-type conductive slip ring Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

12#AWG Teflon wire

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm

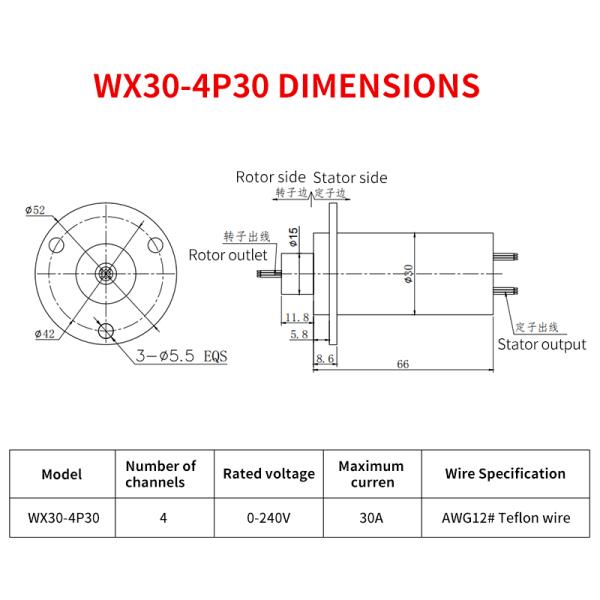

F-WX30-4P30 high-power cap-type conductive slip ring Product Dimensions

4 Way 30A High Power Slip Ring Cap Type Conductive Slip Ring Integrated Flange Structure

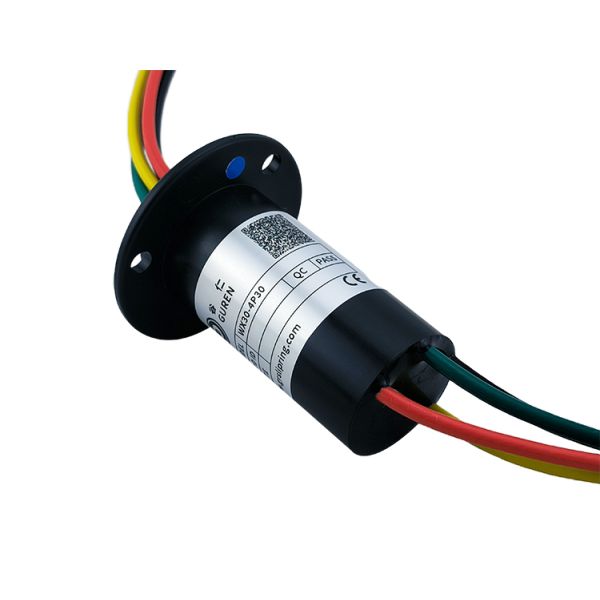

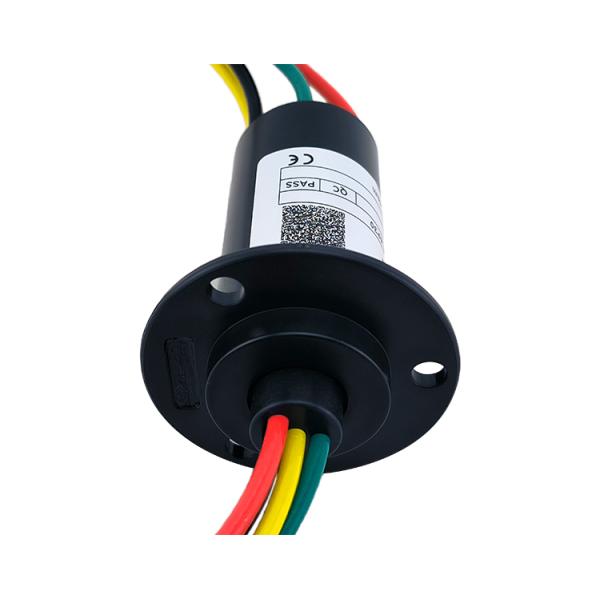

F-WX30-4P30 high-power cap-type conductive slip ring Product images

4 Way 30A High Power Slip Ring Cap Type Conductive Slip Ring Integrated Flange Structure

4 Way 30A High Power Slip Ring Cap Type Conductive Slip Ring Integrated Flange Structure


F-WX30-4P30 high-power cap-type conductive slip ring application

F-WX30-4P30 high-power cap-type conductive slip ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
