6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing
Specifications
Brand Name :
GUREN
Model Number :
F-WX30-6P10
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer diameter :
30mm
Length :
66mm
Installation :
Flange installation
Single channel current :
10A
Current path :
6-way
Wire Specifications :
17#AWG Teflon wire
Description

F-WX30-6P10 6-way 10A flange rotating collector ring. The product has passed CE and ROHS certification. The product uses high-quality Teflon wire and gold-gold plating points, which effectively ensures the stability of circuit and signal transmission.


F-WX30-6P10 flange rotating collector ring product features:

1. Flame-retardant safety housing: PBT material, good flame retardancy, prevent electrical fires.
2. Super-hard gold plating technology: 1000 plug-in and pull-out plating wear <0.1μm, allowing the product to be used longer.
3. Low torque, low friction: The operating noise of the product is <25dB during operation.
4. Integrated dustproof design: 30mm miniaturized body is suitable for pan/tilt, automation equipment, etc.
5. Quick deployment: Flange installation is simpler and more efficient.


F-WX30-6P10 flange rotating collector ring Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

17#AWG Teflon wire

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm

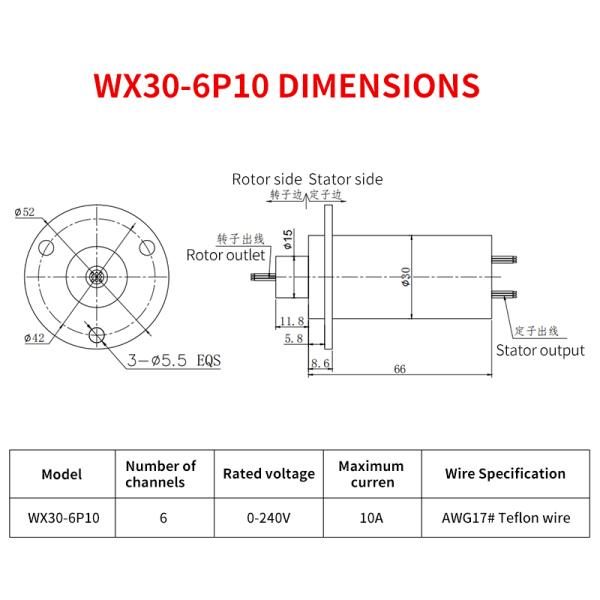

F-WX30-6P10 flange rotating collector ring Product Dimensions

6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing

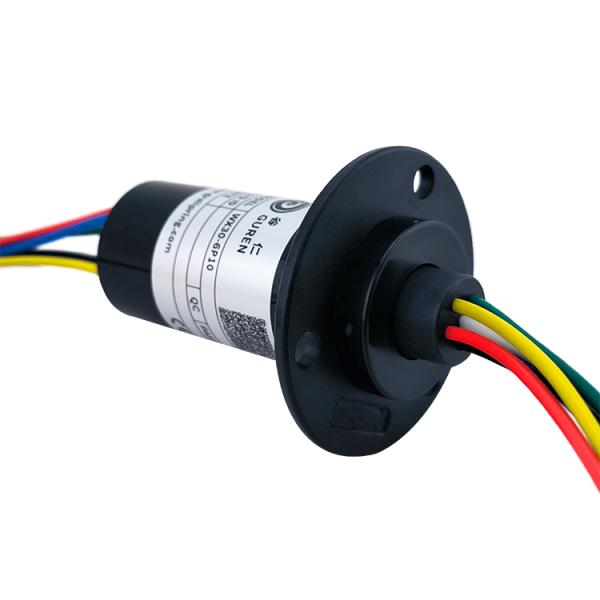

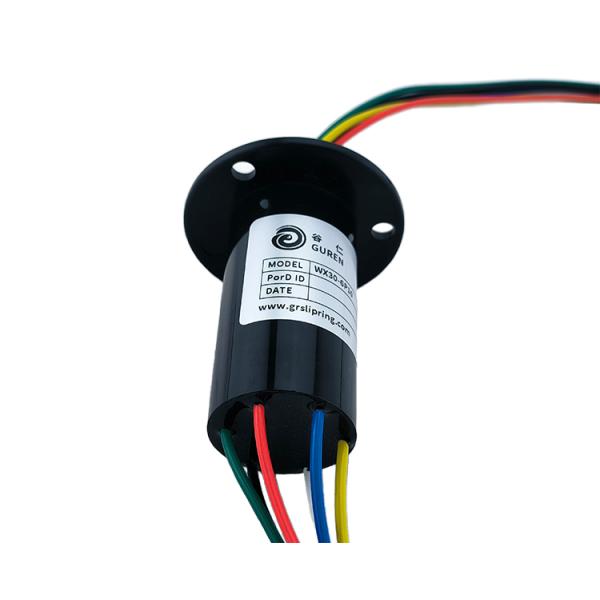

F-WX30-6P10 flange rotating collector ring Product images

6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing

6 Wire Slip Ring 10A Flanged Rotating Connector Rings CE Certified PBT Housing

F-WX30-6P10 flange rotating collector ring application

F-WX30-6P10 flange rotating collector ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
