IP68 All Stainless Housing Waterproof Slip Ring Used In Underwater Robots Pickling Production Line
IP68 All Stainless Housing Waterproof Slip Ring Used In Underwater Robots Pickling Production Line
IP68 All Stainless Housing Waterproof Slip Ring Used In Underwater Robots Pickling Production Line
IP68 All Stainless Housing Waterproof Slip Ring Used In Underwater Robots Pickling Production Line
Specifications
Brand Name :
GuRen
Model Number :
FS1256
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Fiber Mode :
SM
Isolation Resistance :
≥500MΩ@1000VDC ≥100MΩ@100VDC
Contact Resistance :
≤10mΩ
Typical Application :
Drilling platform & oil well
Electrical Noise :
≤15mΩ(50rpm)
Insulation Resistance :
1000MΩ@500VDC
Working Torque :
≤3N*m
Operating Speed :
0~10 rpm
Description

FS series waterproof slip rings are designed for equipment in harsh working environments such as outdoors or underwater. Military standard sealing technology and corrosion-resistant architecture are used to ensure signal and power transmission reliability under extreme working conditions. Depending on the working environment of the equipment, different protection levels such as IP65 and IP68 can be selected.



Features of waterproof slip ring


1. Military-grade protection, stator flange integrated with imported high-pressure seals, supports IP65 (spray-proof)/IP68 (long-term underwater 3m) dual-grade optional.
2. Anti-corrosion shell, all-stainless steel shell, resistant to seawater, acid and alkali solvents and oil and gas corrosion.
3. Gold-gold contact, combined with military-grade electroplating process, guarantees a lifespan of >10 million revolutions.
4. Customizable combination to transmit USB, Ethernet, optical fiber and other signals



Waterproof slip ring parameters


Parameter name

Parameter Value

Power

Signal

Dielectric strength

500VCA@50Hz,60s

300VCA@50Hz,60s

Insulation resistance

≥1000MΩ/500VDC

≥1000MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～440VDC/VAC

Wire Specifications

AF200-17AWG Teflon wire (actually change the wire specifications according to the load conditions)

Wire length

Default 250mm (can be adjusted as required)

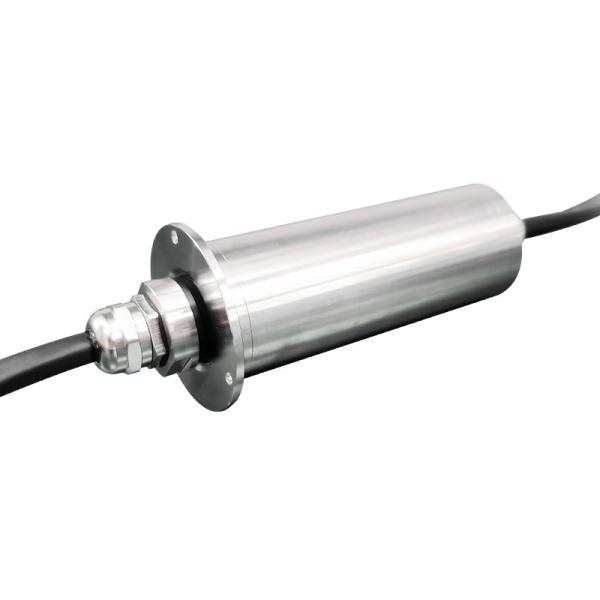

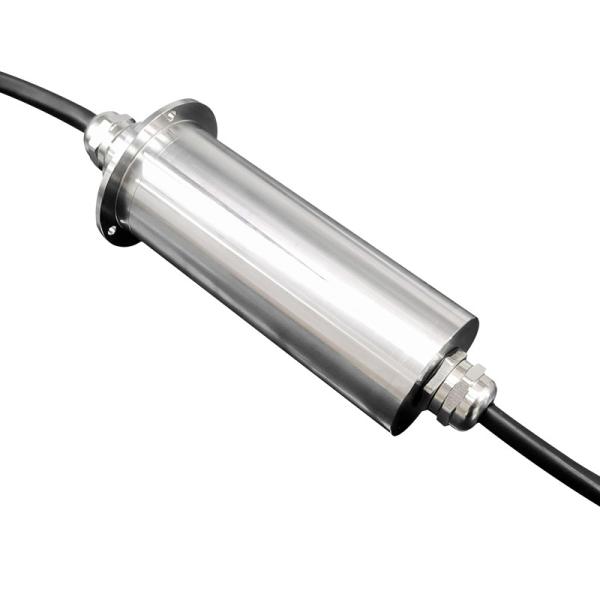

Waterproof slip ring pictures


IP68 All Stainless Housing Waterproof Slip Ring Used In Underwater Robots Pickling Production Line


IP68 All Stainless Housing Waterproof Slip Ring Used In Underwater Robots Pickling Production Line


Waterproof slip ring application scenarios


Mainly used in underwater robots, marine exploration equipment, oil field drilling, chemical production lines, water treatment plants, aerial work vehicle rotating platforms, hydrographic buoys, large irrigation turntables, offshore wind power operation and maintenance ships, pickling production lines, beer machines, filling machines, etc.
