The FS2586 series through-hole waterproof conductive slip rings offer a dielectric strength of 1000 VCA, are compatible with simultaneous power and multi-signal transmission, and are vibration and temperature resistant, making them suitable for medium-sized equipment such as robotic arms and packaging machines.

FS2586 series Features

1. The 25.4mm center hole is designed specifically for medium-diameter shafts. It can be directly installed in equipment such as robotic arm joints and packaging machine shafts without reducing the shaft diameter, simplifying the assembly process.
2. 6-24 channels support mixed transmission of "power + multi-type signals," such as simultaneous input of 220V power, RS485 control signals, and temperature sensor signals, meeting the multi-functional coordination needs of equipment.
3. The metal housing has been enhanced for vibration resistance, preventing internal components from loosening in industrial environments with vibration frequencies ≤100Hz, extending maintenance intervals.
4. The conductors utilize AF200-17AWG Teflon wire, which is temperature-resistant up to 200°C. This prevents insulation failure caused by high-temperature aging in rotating parts near heat sources, such as the shafts of drying equipment.
5. The system can be upgraded to IP68 protection, with a sealing structure optimized for installation clearances in medium-sized equipment. In shallow water environments, no additional waterproof sealant is required after installation.

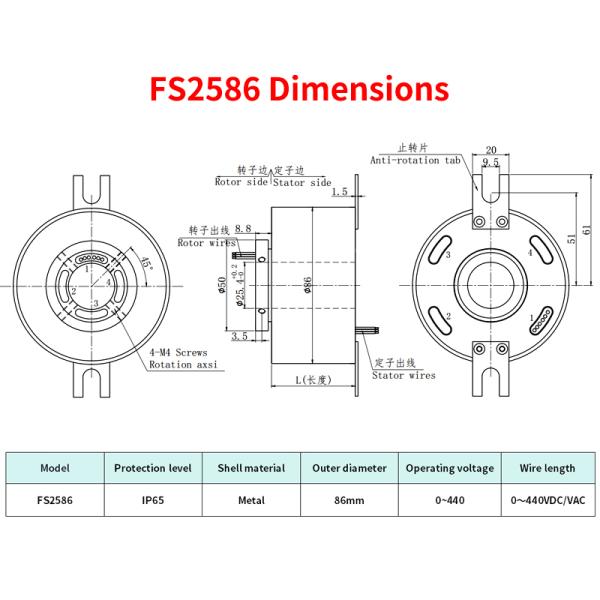

FS2586 series parameters

FS2586 series application scenarios

Mainly used in underwater robots, marine exploration equipment, oil field drilling, chemical production lines, water treatment plants, aerial work vehicle rotating platforms, hydrographic buoys, large irrigation turntables, offshore wind power operation and maintenance ships, pickling production lines, beer machines, filling machines, etc.
