Specifications
Brand Name :
GUREN
Model Number :
FS50119-25P-0215
Certification :
CE、ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Protection level :
IP67
Contact material :
Precious metals
Speed :
0-20rpm
Current :
25 channels
Voltage :
0-220V
Signal :
Network signal
Description
25-Channel Waterproof Slip Ring with Stainless Steel Housing
This industrial-grade 25-channel waterproof slip ring is engineered for extreme environmental conditions. Featuring a corrosion-resistant stainless steel housing with IP67 protection rating, it integrates 25 multi-functional channels including high-current power, Gigabit Ethernet, and signal transmission capabilities. With a generous 50mm inner diameter for cable routing and designed for 20 RPM operation, it provides reliable rotational transmission for demanding applications.
Key Features
  • IP67 Highest Level Protection: Stainless steel housing with precision sealing provides complete protection against dust and immersion in water up to 1 meter for 30 minutes
  • Multi-channel High-Power Integration: Combines 12 channels of 15A high current, 2 channels of 7.5A current, 1 Gigabit Ethernet channel, and 2 general-purpose signal channels
  • Superior Durability: 304 stainless steel construction offers exceptional corrosion, acid, alkali, and impact resistance for harsh industrial environments
  • Large Inner Diameter Design: 50mm center hole accommodates hydraulic pipes and cable bundles with low-speed, heavy-duty operation at 20 RPM
Performance Parameters
Parameter Value
Dielectric strength 500VCA@50Hz,60s
Insulation resistance ≥1000MΩ/500VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Shell material 304 stainless steel casing
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm

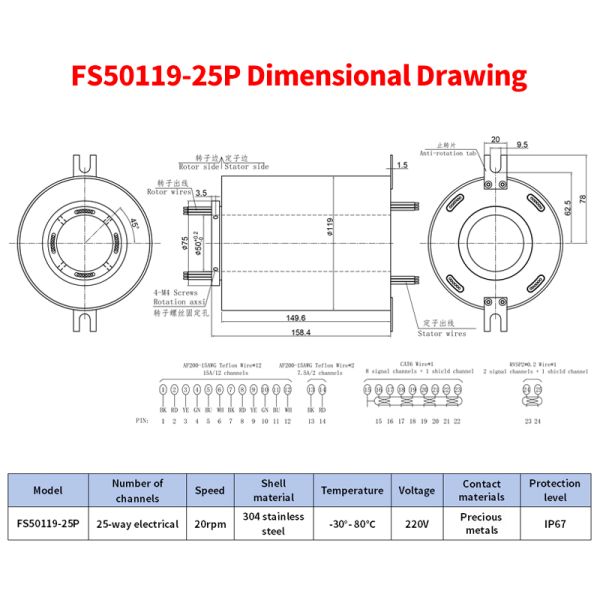

Product Dimensions
25-Channel IP67 Waterproof Slip Ring with Stainless Steel Housing for Reliable Rotary Electrical Connections
Applications
  • Marine Engineering: Marine cranes, radar masts, and deep-sea exploration equipment rotating parts
  • Outdoor Heavy Machinery: Port gantry cranes and mining excavator rotating platforms in high-pressure washing environments
  • Industrial Processing: Food, pharmaceutical, and chemical machinery requiring corrosion resistance and CIP cleaning compatibility
  • Special Vehicles: Communication vehicles, radar vehicles, and special engineering vehicles operating in all weather conditions
Frequently Asked Questions
What water pressure and duration can the IP67 protection rating withstand?
The IP67 standard provides complete dust protection and can withstand immersion in 1 meter of water for 30 minutes without damage. This ensures reliable performance during accidental submersion, heavy rainfall, and high-pressure cleaning operations.
What are the additional advantages of a stainless steel casing compared to an aluminum alloy casing?
Stainless steel offers superior corrosion resistance against acids, alkalis, and salt spray, along with higher mechanical strength and better wear resistance. In corrosive environments like chemical processing, marine applications, or food industries, stainless steel significantly extends product lifespan and prevents seal failure due to casing corrosion.
Will the signal performance of the Gigabit Ethernet channel be affected under IP67 sealing conditions?
No. The Gigabit Ethernet channel features independent shielding and signal integrity design internally, while the IP67 sealing is applied to the external casing. Rigorous testing confirms that the slip ring maintains industrial-standard Gigabit Ethernet transmission performance (speed and error rate) while providing the highest level of environmental protection.
