Flanged Rotating Water Proof Slip Ring Suitable For Outdoor Environment
Flanged Rotating Water Proof Slip Ring Suitable For Outdoor Environment
Specifications
Brand Name :
GuRen
Model Number :
FSF2586 series
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Inner diameter :
25.4mm
Outer diameter :
86mm
Shell material :
aluminum alloy
Installation :
Flange installation
Electrical pathways :
6-36 channels
Protection level :
IP65
Description

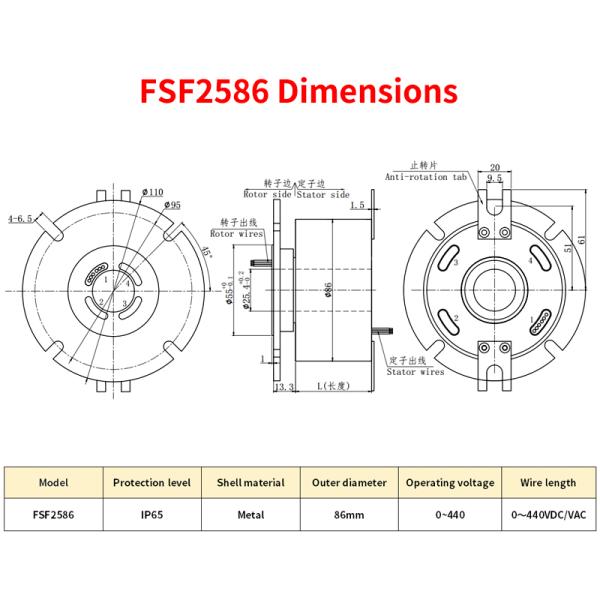

FSF2586 series flange waterproof rotary joint, flange installation, simple and efficient, insulation resistance ≥1000MΩ, multi-channel flexible combination, center hole size of 25.4mm, outer diameter size of 86mm, suitable for use in equipment with fixed rotor end face.


FSF2586 series flange waterproof rotary joint Features

1. The 25.4mm center hole paired with a reinforced flange has a load capacity of up to 50kg, allowing it to directly support rotating equipment components, reducing stress on the main shaft and extending shaft life.
2. The flange features four reserved mounting holes compatible with industry-standard components, eliminating the need for custom connectors during installation and improving assembly efficiency by approximately 40% compared to non-standard flange models.
3. 6-36 channels support "power + differential signal" transmission, allowing for simultaneous transmission of 380V power and PLC differential control signals, ensuring fast control response in rotary stations on automated production lines.
4. The conductors are made of flex-resistant Teflon wire, capable of withstanding over 100,000 bends. This prevents breakage in applications where flange installation requires frequent bending.



FSF2586 series flange waterproof rotary joint parameters


Parameter name

Parameter Value

Power

Signal

Dielectric strength

1000VCA@50Hz,60s

300VCA@50Hz,60s

Insulation resistance

≥1000MΩ/100VDC

≥1000MΩ/100VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～440VDC/VAC

Wire Specifications

Teflon wire (actually change the wire specifications according to the load conditions)

Wire length

Default 300mm (can be adjusted as required)


FSF2586 series flange waterproof rotary joint application scenarios

Mainly used in underwater robots, marine exploration equipment, oil field drilling, chemical production lines, water treatment plants, aerial work vehicle rotating platforms, hydrographic buoys, large irrigation turntables, offshore wind power operation and maintenance ships, pickling production lines, beer machines, filling machines, etc.
