The FSF1256 series is a miniature flange watertight slip ring with rotor flange fixation for enhanced stability, radial runout ≤ 0.1mm, and IP65 basic protection, enabling reliable signal transmission in confined spaces.

FSF1256 series is a miniature flange watertight slip ring Features

1. The rotor features a flanged design, allowing direct mounting to the equipment end face via a flange. This design is suitable for applications where the rotor must withstand axial forces. The radial runout after installation is ≤0.1mm, offering superior stability compared to sleeve-type designs.
2. The dual adaptability of a 12.7mm center hole and flange mounting ensures both shaft diameter matching and end face positioning with minimal error in applications requiring high precision, such as medical rotating instruments and precision testing equipment.
3. An embedded seal is used at the flange-to-housing connection to eliminate weak points in waterproofing caused by mounting gaps. Even with IP65 basic protection, the design resists intrusion from oblique water jets.
4. The cable outlet for the 6-24 channels is perpendicular to the flange plane. In compact spaces, the wires can be routed axially from the housing, minimizing entanglement with other components.
5. The overall weight is only 1.1 times that of a non-flange version of the same size. This significantly reduces the load on lightweight equipment, ensuring both stability and weight savings.

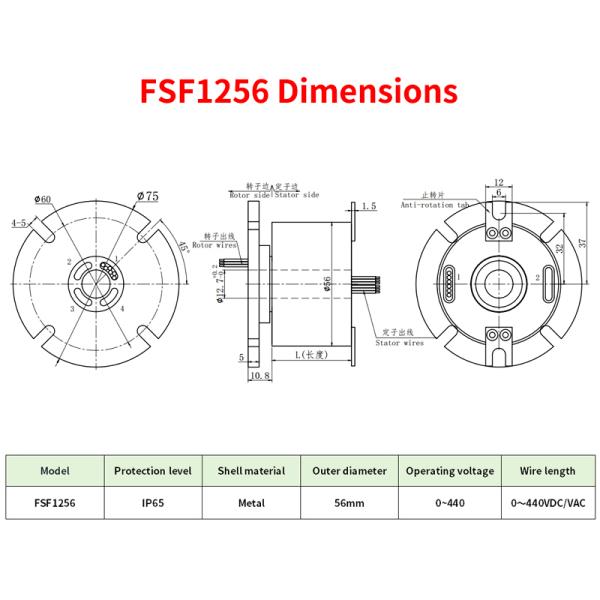

FSF1256 series is a miniature flange watertight slip ring parameters

FSF1256 series is a miniature flange watertight slip ring application scenarios

Mainly used in underwater robots, marine exploration equipment, oil field drilling, chemical production lines, water treatment plants, aerial work vehicle rotating platforms, hydrographic buoys, large irrigation turntables, offshore wind power operation and maintenance ships, pickling production lines, beer machines, filling machines, etc.
