4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
Specifications
Brand Name :
GuRen
Model Number :
Q4PM5-C0323
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Circuit Number :
4 circuits
Trachea size :
M5 6mm
Outer diameter :
64mm
High :
77mm
Sealing Type :
O-Ring
Service Life :
20 million rotations
Description
Product Overview
Q4PM5 customized air slip ring adopts air shaft extension design. The extended air shaft adopts concave structure, which can better fit the equipment connection. The product has 4 air channels and can be connected to 6mm air pipes. The speed is 200 revolutions per minute and can operate under 1MPa air pressure.
Key Features

1. Extended Concave Structural Design
Extended Concave Air Shaft Design: The extended air shaft features a concave structure, improving fit and assembly stability with docking equipment and reducing the risk of leakage.
Multi-Channel Configuration: Provides four independent air channels, each supporting 6mm diameter air tubing, meeting complex air path layout requirements.
2. Reliable Performance Parameters
Working Pressure: Supports high-pressure environments up to 1 MPa, ensuring stable transmission.
Speed ​​Performance: Rated speed of 200 rpm, suitable for medium- and high-speed rotation.
Sealing Reliability: The sealing structure is optimized for high-pressure conditions, ensuring long-term leak-free operation.
3. Versatile Applications: Widely used in industrial robot end effectors, automated pneumatic tools, rotary machining fixtures, high-pressure cleaning equipment, and precision rotary systems requiring multi-channel synchronized pneumatic transmission.

Technical Parameters
Parameter Value
Transmission medium Gas (liquid available by customization)
Working life 20 million revolutions (reference value)
Maximum speed 200 RPM
Pressure range 1.0 MPa
Operating temperature -30℃ to +80℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque increases with channel count)

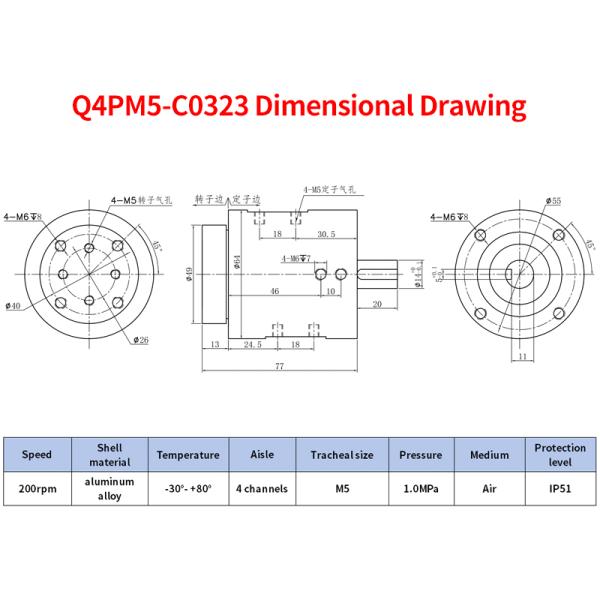

Product Dimensions
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing

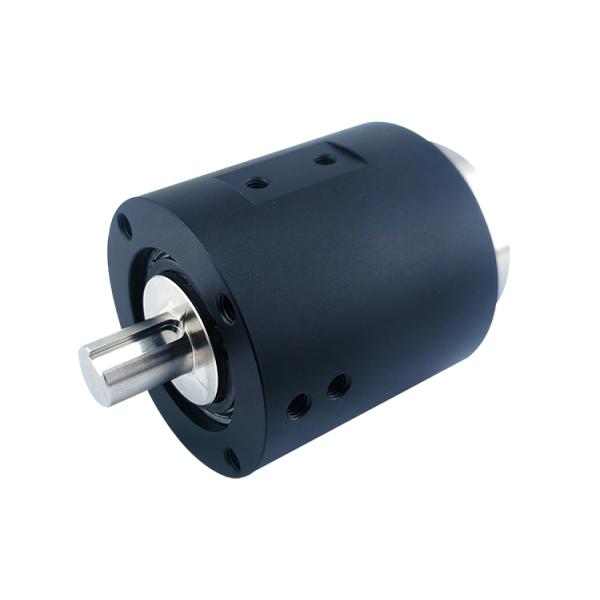

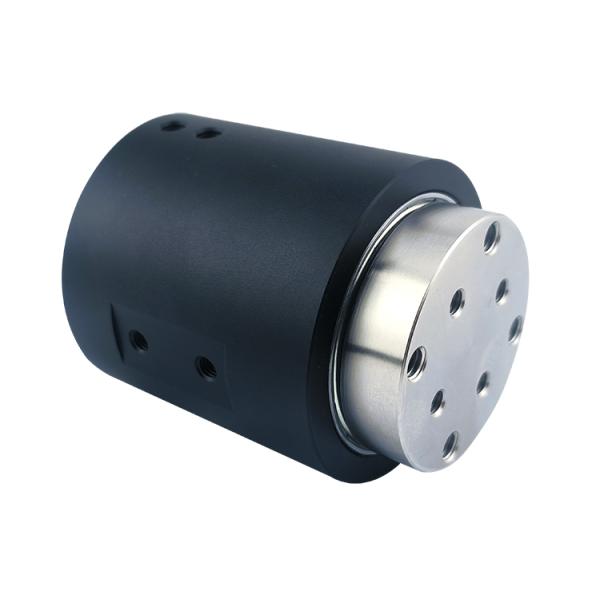

Product images
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing
Application Scenarios
Ideal for applications requiring 360-degree continuous rotation with uninterrupted gas pressure, vacuum, power, and signal transmission. Common uses include:
  • Non-standard automation equipment
  • Lithium battery and mobile phone testing equipment
  • Laser equipment and coating machines
  • Packaging film equipment for soft-pack batteries
  • Electronic semiconductor industrial automation
  • Optoelectronic display manufacturing equipment
  • Rotary worktables and wind power equipment
  • AGV lifting platforms and capsule filling machines
