Specifications
Brand Name :
GuRen
Model Number :
Q2P03-48120-A6287
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Circuit Number :
2 circuits
Inner diameter :
48.5mm
Outer diameter :
120mm
High :
87mm
Sealing Type :
O-Ring
Service Life :
20 million rotations
Description
Product Overview
2-channel water slip ring, the product is a special slip ring for water flow, using a special O-ring, with good anti-leakage performance. The inner diameter of the slip ring is 48.5mm and the outer diameter is 120mm. It adopts an oxidized aluminum alloy shell and can be connected to a 12mm air pipe. The maximum water pressure can reach 0.5MPa and the design speed is 60 revolutions per minute.
Key Features

1. Dual-channel design.
Provides two independent fluid channels, supporting a maximum water pressure of 0.5 MPa.
The interface is compatible with standard 12mm Φ water pipes, ensuring easy connection and high flow efficiency.
2. Excellent sealing performance.
Utilizing a dedicated O-ring and sealing structure, it offers reliable leak-proof performance and is suitable for media such as water and coolant.
The oxidized aluminum alloy housing is corrosion-resistant and provides excellent heat dissipation, extending the product's service life.
3. Hollow design ensures excellent flowability.
With an inner diameter of 48.5 mm and an outer diameter of 120 mm, the hollow structure facilitates pipeline integration.
The maximum design speed is 60 rpm, meeting medium and low-speed rotary transmission requirements.
4. Wide application.
It is widely used in applications such as rotary interfaces for cooling equipment, spindle water cooling systems for CNC machine tools, rotary nozzles for industrial cleaning machines, and fluid circulation interfaces for testing instruments.

Technical Parameters
Parameter Value
Transmission medium Gas (liquid available by customization)
Working life 20 million revolutions (reference value)
Maximum speed 60 RPM
Pressure range 0.5MPa
Operating temperature -30℃ to +80℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque increases with channel count)

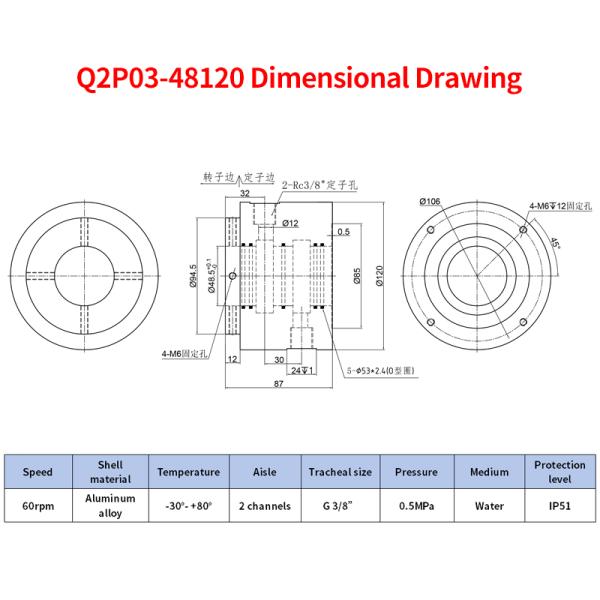

Product Dimensions
Aluminum alloy housing 2-channel water slip ring 60RPM speed IP51 protection

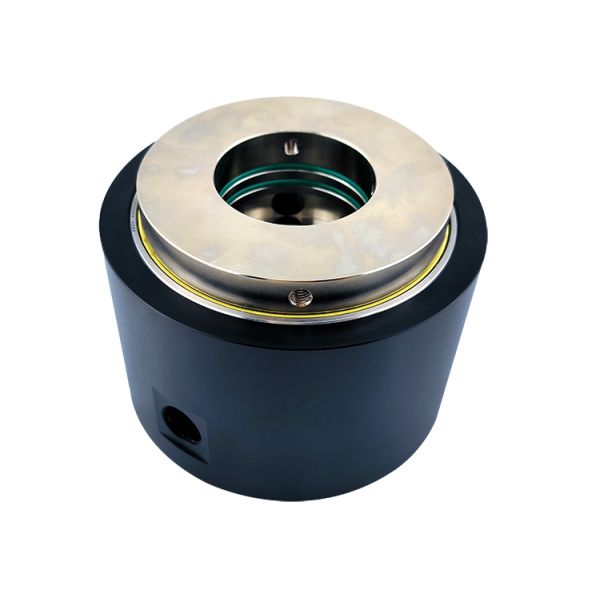

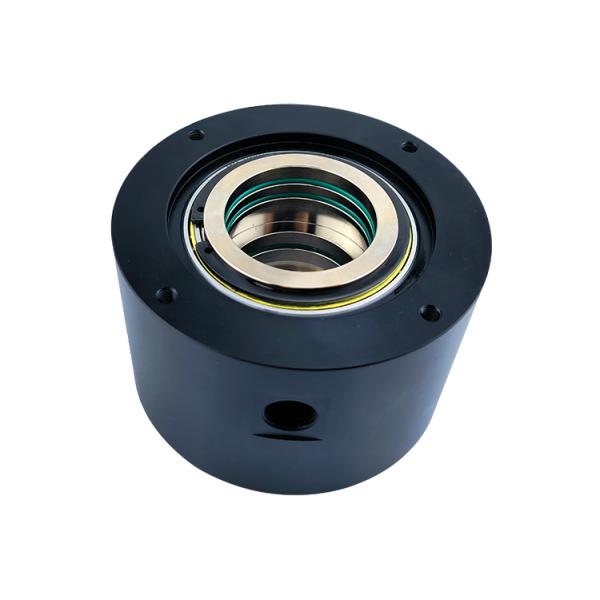

Product images
Aluminum alloy housing 2-channel water slip ring 60RPM speed IP51 protection
Aluminum alloy housing 2-channel water slip ring 60RPM speed IP51 protection
Application Scenarios
Ideal for applications requiring 360-degree continuous rotation with uninterrupted gas pressure, vacuum, power, and signal transmission. Common uses include:
  • Non-standard automation equipment
  • Lithium battery and mobile phone testing equipment
  • Laser equipment and coating machines
  • Packaging film equipment for soft-pack batteries
  • Electronic semiconductor industrial automation
  • Optoelectronic display manufacturing equipment
  • Rotary worktables and wind power equipment
  • AGV lifting platforms and capsule filling machines
