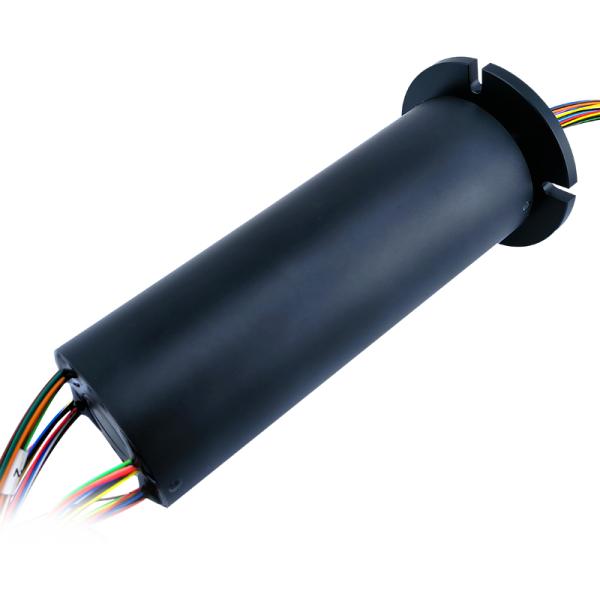

8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
Specifications
Brand Name :
GUREN
Model Number :
SX56F-58P-GRA0389
Certification :
ISO9001.CE.RoHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
outer diameter :
56mm
length :
154.2mm
Signal support types :
Analog video signal 、USB 2.0 、Ethernet signal、 Low-speed digital signal、 Analog signal
Signal bandwidth :
DC~10MHz
Crosstalk Suppression :
-60dB@1MHz
Service life :
20 million rpm
Description
Product Description

The 58-way flange slip ring has an outer diameter of 58mm and 58 electrical channels, 8 of which can pass 5A current and 50 of which can pass 2A current. The product housing is made of anodized aluminum alloy with an IP51 protection grade. The speed can reach 250 rpm. The voltage is within 220V.

Product Features

1. Multi-channel Design.

58 independent electrical channels support high-density simultaneous signal and power transmission.

8 5A channels meet the power supply needs of medium-power devices;

50 2A channels are suitable for signal transmission or powering low-power devices.

Voltage Range: Supports up to 220V operating voltage, compatible with common industrial voltage standards.

2. Compact Flange Design

Compact Size: 58mm outer diameter, compact structure, suitable for integration in space-constrained scenarios.

Material: Anodized aluminum alloy housing for corrosion resistance and excellent heat dissipation, extending device life.

Protection Rating: IP51 protection, dustproof and resistant to vertical dripping, suitable for industrial environments.

3. Fast Speed ​​and Easy Installation.

Speed: Up to 250 rpm, meeting medium- and high-speed rotational transmission requirements.

Mounting Method: Flange mounting, stable structure, easy integration and fixing.

4. Widely used in automated robotic rotary joints, precision testing equipment, medical rotary instruments, semiconductor processing equipment, and complex industrial systems requiring multi-channel simultaneous power and signal transmission.

Performance Parameters
Parameter Name Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.1Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG22#,AWG26# Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 20 million rpm
Product Dimensions
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing

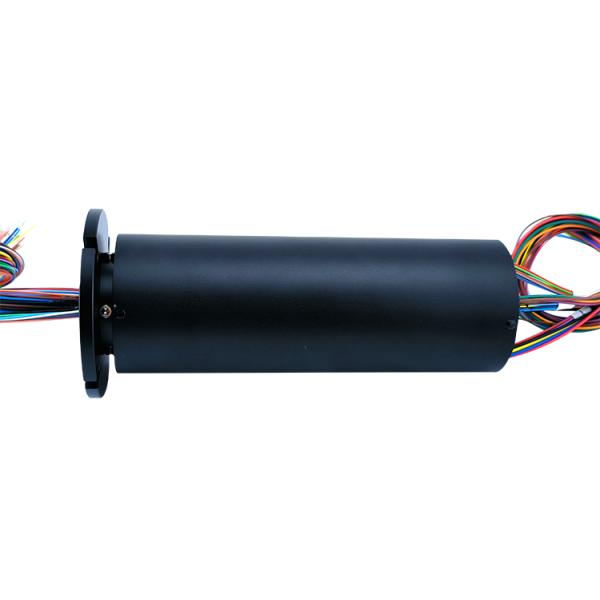

Product Images
8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing 8-way 5A 50-way 2A flange electric slip ring 250rpm speed, aluminum alloy black housing
Product Applications

WX22-6PS conductive slip ring products are widely used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
