Specifications
Brand Name :
GUREN
Model Number :
WX22-36PS-GRCO161
Certification :
ISO9001.CE.RoHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
outer diameter :
22mm
length :
54.5mm
Signal support types :
Analog video signal 、USB 2.0 、Ethernet signal、 Low-speed digital signal、 Analog signal
Number of circuits :
27-way electricity
Contact material :
Gold-Gold
Service life :
2 million rpm
Description
Product Description

This USB slip ring features a USB connector and 24 circuits. It can pass USB signals and 2A current. The housing is injection-molded, with an outer diameter of 22mm and a cap-style design for easy installation. The slip ring has a speed of 150 rpm and is compatible with 220V.

Product Features
1. Combined power and USB transmission.
USB signal channel: Integrated with a standard USB port, supporting USB 2.0 or higher signal transmission, ensuring smooth and uninterrupted data transmission.
Power channel: Provides 24 circuits, each supporting 2A current, meeting the power needs of multiple devices.
Voltage compatibility: Maximum operating voltage is 220V, suitable for common industrial power environments.
2. Small footprint, easy installation.
Compact design: With an outer diameter of only 22mm, the ultra-small size is suitable for height-constrained spaces.
One-piece injection-molded housing: Comprehensively improves sealing and anti-interference capabilities, and is wear- and corrosion-resistant.
Cap-style mounting structure: No additional fasteners are required, making installation easy and enabling quick integration and disassembly.
3. Excellent product performance.
Speed: Up to 150 rpm, meeting medium and low-speed rotation transmission needs.
Signal stability: Optimized contact and shielding design reduces signal attenuation and electromagnetic interference.
4. Wide range of applications. Widely used in rotating cameras, robot joints, exhibition stand equipment, smart security pan/tilts, and precision rotating systems that require simultaneous transmission of USB data and power.
Performance Parameters
Parameter Name Parameter Value
Dielectric strength 100VCA@50Hz,60s
Insulation resistance ≥500MΩ/100VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG28#Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material PBT
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
22mm OD USB 2.0 27-Way Electricity Slip Ring with Flange Mount and 2 Million RPM Service Life

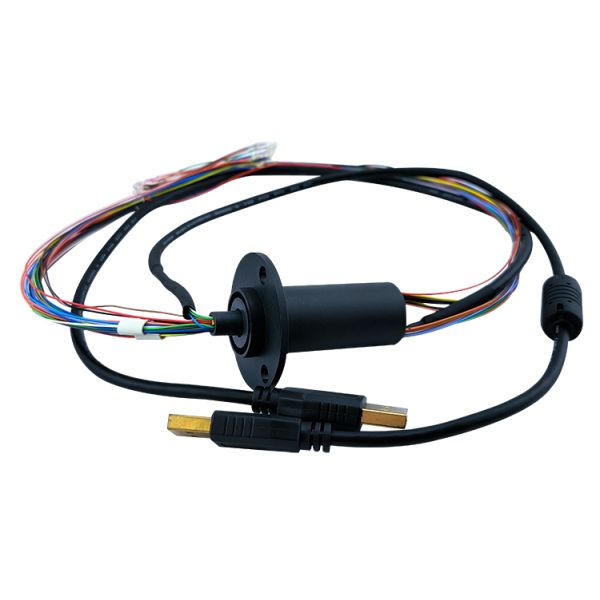

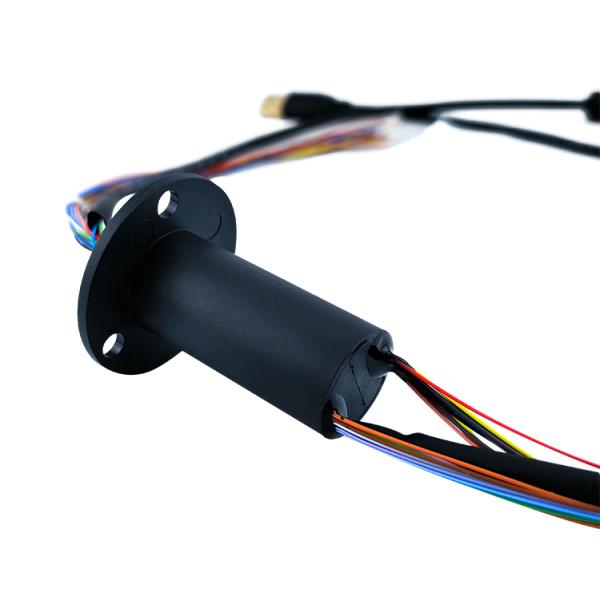

Product Images
22mm OD USB 2.0 27-Way Electricity Slip Ring with Flange Mount and 2 Million RPM Service Life 22mm OD USB 2.0 27-Way Electricity Slip Ring with Flange Mount and 2 Million RPM Service Life
Product Applications

products are widely used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
