1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
Specifications
Brand Name :
GUREN
Model Number :
WX75F-4P10-E0209
Certification :
ISO9001.CE.RoHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
outer diameter :
75.6mm
length :
140.8mm
Number of circuits :
2-channel 7.5A
Contact material :
Precious metals
Service life :
20 million rpm
Wire specifications :
AWG20# silicone wire
Description
High-Voltage Flanged Slip Rings - 1000V Rated
This high-voltage flanged slip ring supports operating voltages up to 1000V, with each channel capable of transmitting 7.5A current. Featuring a robust aluminum alloy flange housing with precious metal contacts and high-voltage resistant AWG20# silicone wires, this 75.6mm diameter unit operates at 250 RPM to provide safe, reliable rotating power transmission for demanding applications including power testing, special equipment, and industrial high-voltage circuits.
Key Features
  • 1000V High Voltage Safety Tolerance: Optimized for high-voltage environments with excellent insulation performance for safe, stable long-term operation at 1000V voltage levels
  • Dual Power and Voltage Resistance: Provides 4 channels of 7.5A current transmission while maintaining high voltage withstand capability
  • High-Voltage Safety Materials: Precious metal contacts ensure reliability; AWG20# silicone wires offer high-voltage resistance, temperature tolerance, and insulation characteristics
  • Industrial-Grade Dynamic Reliability: Aluminum alloy housing provides heat dissipation and mechanical protection, supporting 250 RPM operation for long-term stability
Technical Specifications
Dielectric strength500VCA@50Hz,60s
Insulation resistance≥1000MΩ/500VDC
Dynamic resistance change value＜0.01Ω
Rated voltage0～1000VDC/VAC
Wire SpecificationsAWG20# silicone wire
Wire lengthRotor 300mm; stator 300mm (reference value)
Operating temperature-30℃～+80℃
Operating humidity0～85%RH
Protection levelIP51
Shell materialAluminum alloy
Rotational torque0.05N.m,+0.01N.m/6-way
Service life20 million rpm
Product Dimensions

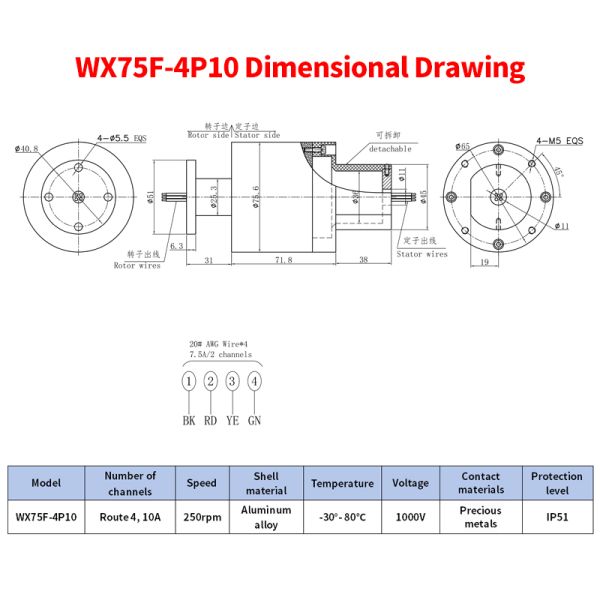

1000V High-Voltage Flanged Slip Ring with 7.5A Current Transmission and Precious Metal Contacts
Applications
  • High-voltage testing equipment: Dynamic high-voltage application and signal feedback for rotary withstand voltage test benches and circuit breaker life testing machines
  • Special industrial equipment: Power supply for rotating electrodes in high-voltage electrostatic spraying and powder coating equipment
  • Power and energy equipment: Rotating connection parts for dynamic reactive power compensation devices and special transformers
  • Scientific research and laboratory systems: Various research devices requiring rotating experiments or sample processing under high voltage
Frequently Asked Questions
Is 1000V an AC RMS (alternating current root mean square) or DC (direct current) voltage?
This 1000V rating refers to the peak voltage withstand rating. Whether it refers to AC RMS or DC needs to be confirmed according to the detailed product specifications. Typically, the DC withstand voltage test value for such high-voltage slip rings is higher.
Why is silicone wire used instead of common Teflon wire?
AWG20# silicone wire exhibits excellent performance in terms of high voltage resistance, flexibility, and extreme temperature range (typically -60℃ to +200℃). It also has excellent arc resistance and aging resistance, making it particularly suitable for harsh environments with high voltage and potential thermal shock, thus providing higher safety.
How is long-term safety ensured for high-voltage connections at a rotational speed of 250 RPM?
The product uses precious metal contacts to reduce electrical sparks, an optimized insulation structure and dynamic sealing design to prevent carbon dust accumulation, and rigorous dynamic balancing tests to ensure smooth operation at high speeds. These measures collectively ensure long-term insulation safety and electrical stability of the high-voltage connection at high rotational speeds.
