45-Way 2A Cap-Type Slip Ring
The 45-channel 2A cap-type slip ring integrates up to 45 independent channels within an aluminum alloy housing with an outer diameter of only 25mm. Each channel is capable of transmitting 2A of current or signal. Featuring premium gold-to-gold contact materials and AWG28# Teflon wires, this product supports a working voltage of 240V and rotation speed of 250 RPM. Specifically designed for precision instruments and miniature automation equipment requiring high channel counts in extremely limited installation spaces.
Key Features
  • Ultra-high channel density: 45 channels within a miniature 25mm scale, leading the industry in signal transmission capacity per unit space.
  • Premium electrical contact performance: Gold-to-gold contact materials ensure extremely low contact resistance, excellent signal integrity, and extended mechanical lifespan.
  • Ultra-compact cap structure: Miniaturized aluminum alloy housing provides excellent heat dissipation and structural strength for highly miniaturized and lightweight equipment.
  • High-performance stable operation: 250 RPM rotational speed meets most dynamic transmission requirements with 240V operating voltage compatibility for industrial and instrumentation applications.
Technical Specifications
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG26# Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions

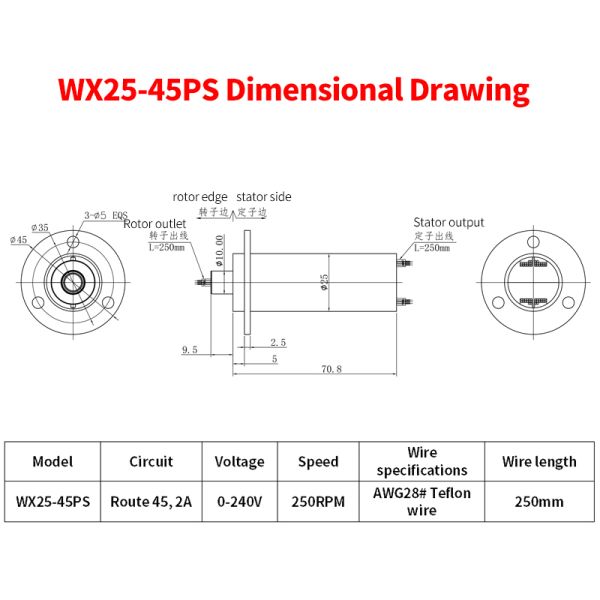

45-channel 2A Cap-Type Slip Ring with Gold-to-Gold Contact and 25mm Outer Diameter
Applications
  • Precision testing and measurement instruments: High-speed rotating multi-channel data acquisition systems, signal aggregation and transmission for semiconductor test probe stations.
  • High-end imaging and detection equipment: Miniature endoscopes, multispectral scanners, and multi-channel sensor signals and power transmission within laser radar rotating heads.
  • Miniature multi-axis automation systems: Multi-channel drive and sensing signal integration at the joints of precision assembly robots and miniature pick-and-place machines.
  • Specialized communication and radar equipment: Multi-channel signals for miniaturized phased array radar units and satellite communication rotating joints.
Frequently Asked Questions
Can all 45 channels operate simultaneously at a full load of 2A?
Electrically, all channels support simultaneous operation. However, when operating at full load, the temperature rise due to total power consumption needs careful consideration. We recommend providing specific application conditions so our engineers can assist with thermal simulation assessments to ensure stable and reliable operation in your environment.
How much longer is the lifespan of gold-to-gold contacts compared to other materials?
Under the same operating conditions, gold-to-gold contacts typically have a cycle life an order of magnitude higher than ordinary copper-based or silver-based materials, due to excellent arc oxidation resistance and low friction coefficient. This makes them particularly suitable for high-end applications requiring long life and maintenance-free operation.
What is the installation thickness (height) of the cap-type structure with a 25mm outer diameter?
The axial installation dimension (height) of the cap-type slip ring is also very compact. Please refer to the detailed product drawings for specific dimensions. This design maximizes space savings in both the axial and radial directions of the equipment.
