Specifications
Brand Name :
GuRen
Model Number :
Q1P01-1056-6PS-C0341
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
1 channel
Interface Specifications :
G1/8"
Applicable trachea :
6-8mm
Width :
56mm
Length :
106.9mm
Protection level :
IP51
Description
Product Overview
This is a highly integrated pneumatic-electric hybrid slip ring, featuring an innovative combination of one pneumatic channel and six signal circuits. The casing is made of black aluminum alloy, and the internal wiring uses AWG26# Teflon wire, supporting 220V operating voltage and 200RPM operating speed. It provides a reliable rotary connection solution for equipment requiring simultaneous transmission of pneumatic power and electrical signals.
Key Features

Synchronous Pneumatic-Electric Transmission: Integrates 1 pneumatic circuit and 6 signal circuits, achieving integrated transmission of power and signals.
Superior Material Guarantee: The black aluminum alloy casing provides excellent heat dissipation and mechanical protection; AWG 26# Teflon wire ensures stable signal transmission.
Industrial-Grade Performance: 200 RPM speed combined with 220V operating voltage meets the needs of most industrial applications.
Compact Structural Design: The ingenious structural design achieves hybrid pneumatic-electric function within a limited space.

pneumatic and signal combination slip ring Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength 200VCA@50Hz,60s Number of trachea 1 in 1 out
Insulation resistance ≥100MΩ/200VDC Pressure -99KPa-0.8MPa or vacuum
Dynamic resistance change value ＜10mΩ Rotational torque <0.3N.m
Rated voltage 0～220VDC/VAC Rotation speed 200rpm
Wire Specifications Teflon wire (current-dependent) Shell material Aluminum Alloy
Wire length Default 300mm (Customizable) Temperature -30℃～+80℃
Contact material Precious metal contacts Operating humidity 0～85%RH
Protection level IP51

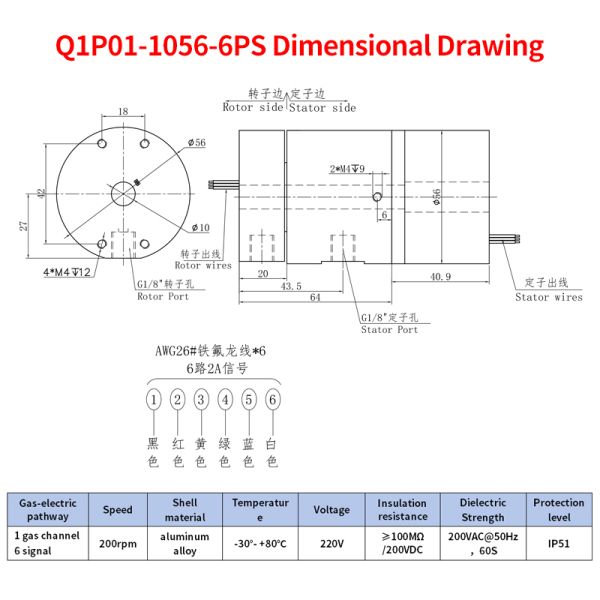

Technical Drawings
Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8
Application Scenarios

Automated assembly equipment: Power supply for pneumatic grippers and sensors on rotary worktables.

Industrial robots: Hybrid pneumatic-electric transmission for robot end effectors.

Packaging machinery: Pneumatic control and electrical testing for rotary workstations.

Testing and measuring equipment: Pneumatic actuation and signal acquisition for rotary testing tables.

Frequently Asked Questions

Q1: What is the maximum operating pressure supported by the air passage?

A: The air passage of this product adopts an industrial standard design. Please refer to the product specification sheet or consult our technical support for the specific maximum operating pressure.

Q2: Does the 6-channel circuit support high current transmission?

A: The standard version of this product focuses on signal transmission. If high current transmission capability is required, we can provide customized solutions.

Q3: Does the product support higher speed operation?

A: The standard version of this product is optimized for 200 RPM. If higher speed requirements are needed, we can provide customized design solutions.
