Specifications
Brand Name :
GUREN
Model Number :
WX11-8PS-GRC0217
Certification :
ISO9001.CE.RoHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
outer diameter :
11mm
length :
44.8mm
Number of circuits :
8-way 1A
Contact material :
Gold-Gold
Service life :
2 million rpm
Wire specifications :
AWG30# Teflon wire
Description
This 8-channel 1A low-power slip ring is specifically designed for miniature devices. It features an extremely compact structure with an outer diameter of only 11mm and is equipped with a 6mm aluminum alloy bushing. Utilizing gold-to-gold contact materials and AWG30# Teflon wire, it supports 48V operating voltage and 100RPM speed, and has an IP40 protection rating, providing a reliable rotary connection solution for space-constrained, low-power devices.
8-channel 1A low-power slip ring Key Features

Ultra-compact design: An ultra-small 11mm outer diameter paired with a 6mm bushing meets the extreme installation requirements of miniature devices.

Gold-to-gold contact guarantee: Utilizing gold-to-gold contact materials ensures stability in low-signal transmission and an ultra-long service life.

Premium cable configuration: AWG30# Teflon wire provides excellent insulation performance and high-temperature resistance.

Precise voltage matching: 48V operating voltage optimized for low-power devices, resulting in lower energy consumption and higher safety.


8-channel 1A low-power slip ring Technical Specifications
Parameter Value
Dielectric strength 100VCA@50Hz,60s
Insulation resistance ≥100MΩ/100VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～48VDC/VAC
Wire Specifications AWG30#Teflon wire
Wire length Rotor 100mm; stator 200mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP40
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm

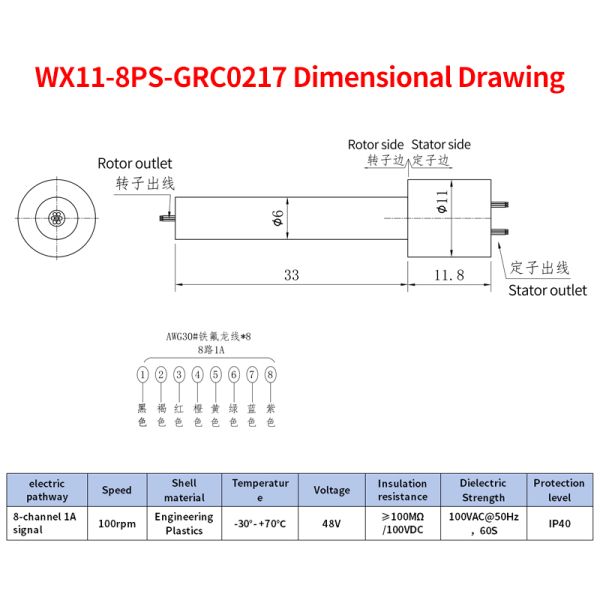

8-channel 1A low-power slip ring Product Dimensions
8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices


8-channel 1A low-power slip ring Applications

Miniature robots: Signal and power transmission in rotating joints.

Precision instruments: Rotating connection parts in medical equipment and testing instruments.

Security monitoring: Signal transmission for miniature pan-tilt cameras.

Smart wearables: Power supply for specialized rotating structures.


8-channel 1A low-power slip ring Frequently Asked Questions

Q1: What is the maximum load current of AWG 30# wire?

A: AWG 30# wire can stably carry 1A of current under normal operating conditions, meeting the power requirements of most low-power equipment.

Q2: What is the specific installation method for the 6mm bushing?

A: The bushing is designed to directly mate with miniature bearings. Detailed installation dimension diagrams are provided to ensure quick and accurate assembly.

Q3: What environments is the IP40 protection rating suitable for?

A: IP40 protection effectively prevents the intrusion of solid foreign objects larger than 1mm in diameter, making it suitable for indoor environments with basic dust protection requirements.
