Specifications
Brand Name :
GUREN
Model Number :
WX25-56PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
outer diameter :
25mm
length :
95mm
Number of circuits :
56-way 2A
Contact material :
Gold-Gold
Service life :
2 million rpm
Wire specifications :
AWG28# Teflon wire
Description
This 56-channel 2A high-density flange slip ring is designed for precision rotating equipment requiring the transmission of multiple signals and power. The product features a 56-channel integrated design, with each channel supporting 2A current and a maximum speed of 250RPM. The core contact points use gold-to-gold material, paired with AWG28# Teflon wire, ensuring stable and reliable power and signal transmission at a 240V operating voltage.
56-channel 2A flange slip ring Key Features

High-density channel design: Integrates 56 independent channels, each capable of carrying 2A of current, meeting the needs of parallel multi-signal transmission.

Gold-to-gold contact protection: Employs gold-to-gold contact points to effectively reduce contact resistance, ensuring signal transmission stability and long lifespan.

Premium cable configuration: Uses AWG28# Teflon wire, resistant to high temperatures and corrosion, ensuring reliable electrical connections.

High-performance dynamic transmission: Supports 250RPM speed; aluminum alloy casing provides excellent heat dissipation and mechanical protection.


56-channel 2A flange slip ring Technical Specifications
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～240VDC/VAC
Wire Specifications AWG28#Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm

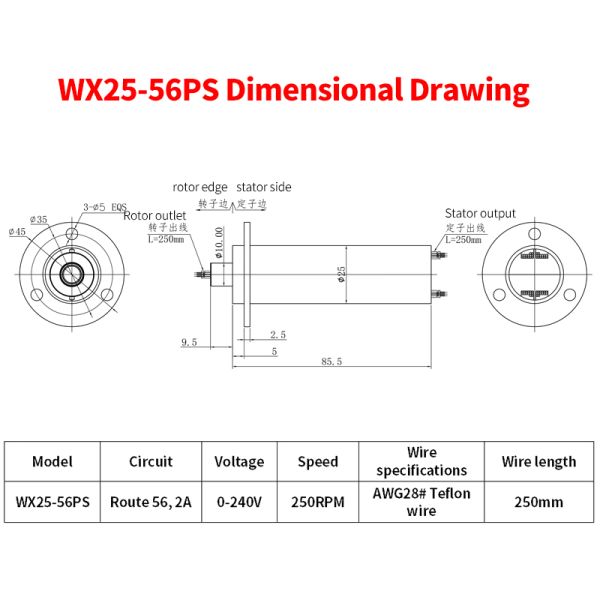

56-channel 2A flange slip ring Product Dimensions
56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment


56-channel 2A flange slip ring Applications

Precision testing equipment: Multi-channel data acquisition system, rotary testing platform.

Automation control systems: Multi-sensor devices, industrial robot rotary joints.

Medical equipment: Rotary CT scanner, medical testing instruments.

Communication equipment: Radar system, antenna rotation connection device.


56-channel 2A flange slip ring Frequently Asked Questions

Q1: What are the advantages of gold-gold contacts compared to other materials?

A: Gold-gold contacts offer excellent conductivity and oxidation resistance, resulting in lower and more stable contact resistance, significantly improving product lifespan and transmission reliability.

Q2: Can all 56 channels operate at full load simultaneously?

A: Yes, the product design supports all channels operating at 2A simultaneously. It is recommended to consider overall heat dissipation in practical applications. For continuous full-load operation, please consult technical support.

Q3: Does the product support higher operating voltages?

A: The standard version of this product is optimized for 240V. For higher operating voltages, we can provide customized solutions. Please contact technical support for details.
