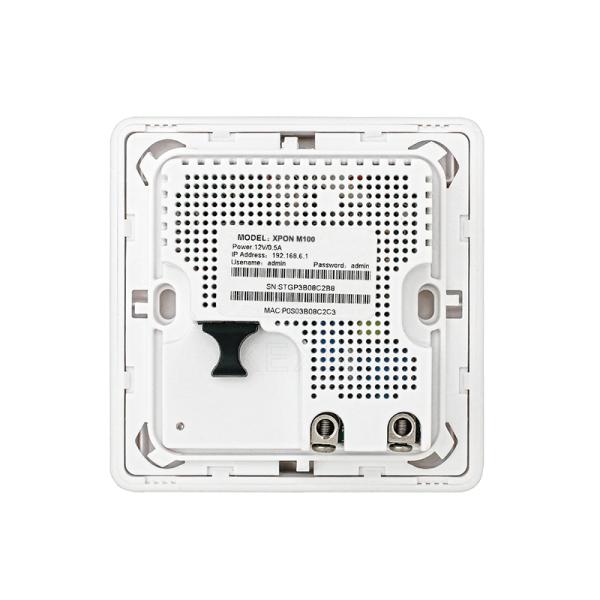

COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
COMELINK FTTH GPON EPON Gigabit 1GE 1FXS WiFi Fiber Optic Network Equipment ONU
Specifications
Brand Name :
Comelink
Model Number :
M100
Certification :
ROHS/ISO9001/CE
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
USD 20 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500+PCS+per week
Delivery Time :
7 days
Packaging Details :
Carton
Size :
86 * 86 * 32mm
Rate :
uplink 1.25gbps, downlink 2.5Gbps
power supply :
AC 200V
power consumption :
< 6W
Transmission wavelength :
1310nm
Receiving sensitivity :
< - 27dBm
Humidity :
10 ~ 90% non condensing
Operating temperature :
0 ° ~ 40 ℃
Description

Come-M100 is designed and manufactured by Shenzhen Comelink Technology Co.,Ltd, designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. The product is based on the mature Gigabit GPON technology, which has high ratio of performance to price. It is highly reliable and easy to maintain, with guaranteed QOS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

CPU
ITL9601D VA3
DDR
256M
FLASH
128M
Optical fiber interface
1 SC / APC fiber por
Ethernet interface
1 x 10 / 100 / 1000m adaptive port (RJ45)

Product features
Comply with ITU-T g.984 standard
It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
Support frame filtering and suppression
Support the standard 802.1Q VLAN function and VLAN conversion
Support 2.6.3 IGMP snooping and the function of restoring factory parameters
Support Ethernet port speed limit, loop detection and layer-2 isolation
Support remote reset and restart functions
Support status detection and fault reporting
Support 4094 VLANs and power lightning protection
Support dynamic bandwidth allocation and data encryption
Support PPPoE, ipoe, bridge and other services
Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic
control

Product Properties
support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
interface type: SC / APC
maximum spectral ratio: 1:128
rate: uplink 1.25gbps, downlink 2.5Gbps
receiving wavelength: 1490nm
transmission wavelength: 1310nm
output optical power: - 1 ~ + 4dbm
receiving sensitivity: < - 27dBm
The longest distance between OLT and ONU is 20km
power supply: AC 200V
Humidity: 10 ~ 90% non condensing
Operating temperature: 0 ° ~ 40 ℃
Storage temperature: - 40 ° ~ 70 °
power consumption: < 6W
chassis specification: 86 * 86 * 32mm (length * width * height)
