COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU
Specifications
Brand Name :
Comelink
Model Number :
GPE550
Certification :
ROHS/ISO9001/CE
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
USD 25 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500+PCS+per week
Delivery Time :
7 days
Packaging Details :
Carton
Power Source :
DC 12V/1A
Optical output power :
-1~+4dBm
Receiving sensitivity :
< -27dBm
Maximum Spectral Ratio :
1:128
Transmission Wavelength :
1310 nm
Operating Temperature :
- 5 ℃ ~ +55 ℃
Rate :
Uplink 1.25Gbps, Downlink 2.5Gbps
Description

NU equipment is composed of core functional circuits, power supply and management and other common units and communication interfaces. The core functional blocks include user and service multiplexing functions, transmission multiplexing functions, and ODN interface functions.

FTTR Home Terminal All Optical Main Gateway Product Form:

FTTR all optical main gateway XGPON Combo FT3630X: XG-PON Combo uplink,

1 * GPON, 4 * GE electrical port,

1 * USB, Dual AX3000 WiFi6 (2x2MIMO),

1 * POTS voice port

COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU

COMELINK 1 USB 2.0 Port Wireless Network WiFi Fiber Optical Equipment GEPON ONU

Product Features
➤ Comply with ITU-T G.984 standard
➤ Comply with H.248, MGCP and SIP protocol standards
➤ Comply with 802.11 n/b/g protocol standard
➤ It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
➤ Support frame filtering and suppression
➤ Support the standard 802.1Q VLAN function and VLAN conversion
➤ 4094 VLANs supported
➤ Support dynamic bandwidth allocation
➤ Support PPPoE, IPoE, bridge and other services
➤ Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic control
➤ Support 2.6.3 IGM snooping
➤ Support Ethernet port speed limit, loop detection and layer-2 isolation
➤ Support power failure alarm
➤ Support remote reset and restart functions
➤ Support the function of restoring factory parameters
➤ Support data encryption
➤ Support status detection and fault reporting
➤ Support power lightning protection
➤ support GPON/EPON dual mode

Specification:

Item
Value
DDR
256 M
FLASH
4 GB (4096*8 bit)
Optical Fiber Interface
1 SC / APC fiber port

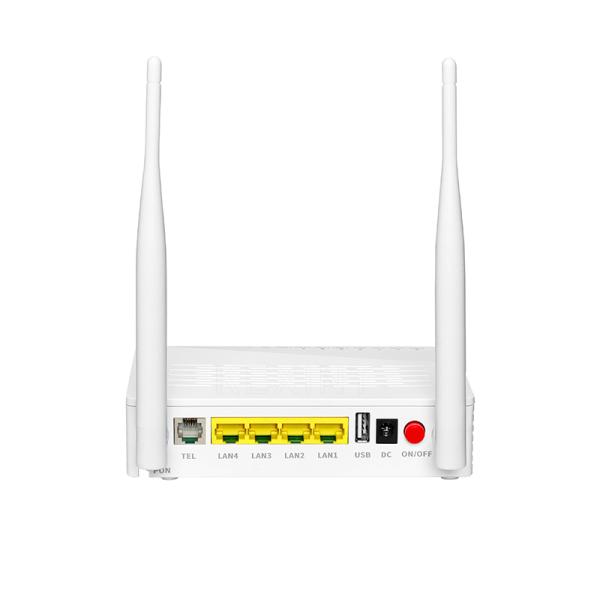

Ethernet Interface
1 x 10 / 100 / 1000 M adaptive port (RJ45)
3 x 10 / 100 M adaptive ports (RJ45)
Telephone Interface
1 4-core telephone port
Wireless WiFi
2 external antennas
IEEE 802.11 b/g/n compliant
2.4 GHz wireless network
USB Port
1 USB 2.0 port
