Specifications
Brand Name :
Comelink
Model Number :
XPE650
Certification :
ROHS/ISO9001/CE
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
USD 30 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500+PCS+per week
Delivery Time :
7 days
Packaging Details :
Carton
Network :
wifi, 4g
Power Supply :
12V / 1A
Receiving Sensitivity :
< - 27dBm
Size :
194 * 152 * 32 mm (L * w * h)
Output Optical Power :
- 1 ~ + 4dbm
Transmission Wavelength :
1310 nm
Description

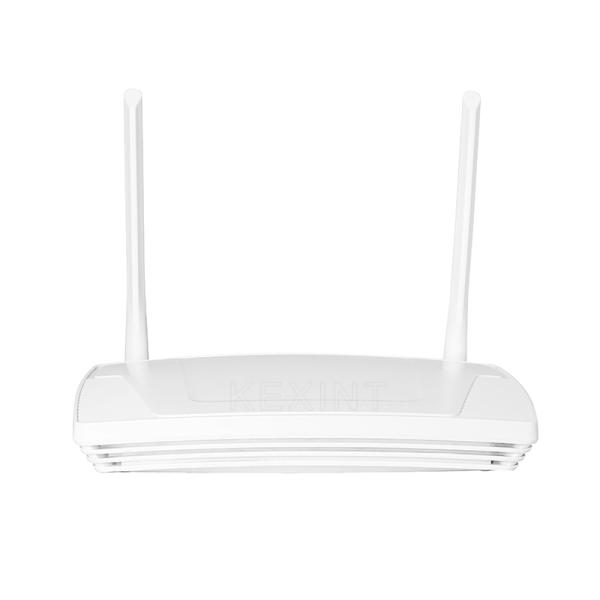

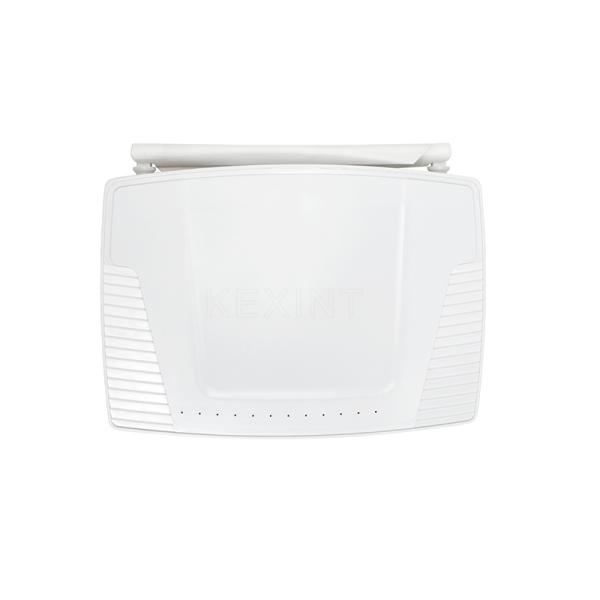

XPE650 type ONU products fully comply with IEEE 802.3-2005 and ITU-T G.984.x . It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

Data parameter
DDR
512M
FLASH
2GB

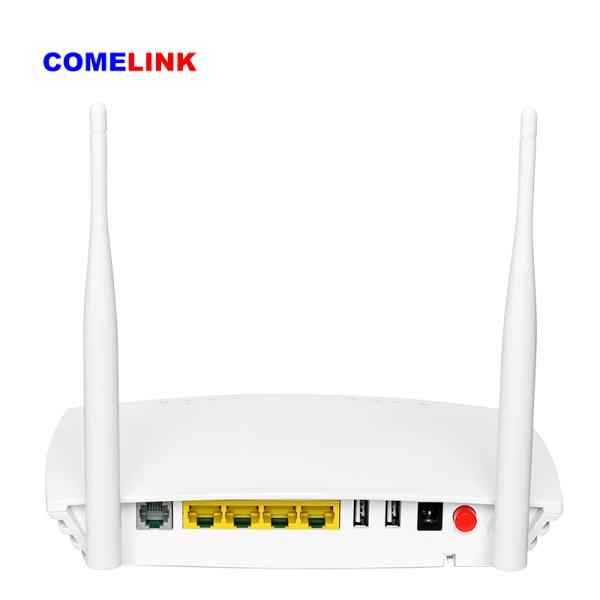

Optical fiber interface
1 SC / APC fiber port
Ethernet interface
1 x 10 / 100 / 1000m adaptive port (RJ45)
3 x 10 / 100M adaptive ports (RJ45)
Telephone interface
1 2-core telephone port
Wireless WiFi
2 external antennas
IEEE 802.11b/g/n compliant
2.4GHz wireless network
IEEE 802.11a/n/ac compliant
5GHz wireless network
USB port
2 USB 2.0 port

Product features
➤ Comply with ITU-T g.984 standard
➤ Comply with H.248, MGCP and SIP protocol standards
➤ Comply with 802.11 n / B / g protocol standard
➤ It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
➤ Support frame filtering and suppression
➤ Support the standard 802.1Q VLAN function and VLAN conversion
➤ 4094 VLANs supported
➤ Support dynamic bandwidth allocation
➤ Support PPPoE, ipoe, bridge and other services
➤ Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic control
➤ Support IGMP proxy and IGMP snooping
➤ Support Ethernet port speed limit, loop detection and layer-2 isolation
➤ Support power failure alarm
➤ Support remote reset and restart functions
➤ Support the function of restoring factory parameters
➤ Support data encryption
➤ Support status detection and fault reporting
➤ Support power lightning protection
➤ support GPON / EPON dual mode

Product Properties
support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
interface type: SC / APC
maximum spectral ratio: 1:128
rate: uplink 1.25gbps, downlink 2.5Gbps
receiving wavelength: 1490nm
transmission wavelength: 1310nm
output optical power: - 1 ~ + 4dbm
receiving sensitivity: < - 27dBm
The longest distance between OLT and ONU is 20km
power supply: AC 200V
Humidity: 10 ~ 90% non condensing
Operating temperature: 0 ° ~ 40 ℃
Storage temperature: - 40 ° ~ 70 °
power consumption: < 6W
chassis specification: 194 * 152 * 32 mm (length * width * height)
